Description
As a direct China chain link fence factory, manufacturer or supplier, ABX Metal produces chain link fence that delivers reliable perimeter security at factory-direct prices. Our diamond mesh fencing suits industrial sites, sports facilities, farms, and residential boundaries. We export worldwide with certified quality control on every order.
Why Choose ABX Metal Chain Link Fence?
Chain link fence remains the most cost-effective perimeter security solution for projects of any scale. ABX Metal manufactures each roll in our own factory, giving you consistent quality and competitive wholesale pricing. Our galvanized and PVC coated options resist rust for decades. You get a durable fence that looks professional and requires almost no maintenance.
We serve contractors, distributors, and project managers across the globe. Our factory holds ISO-certified production standards. Every order passes quality inspection before shipment. We support OEM orders, custom sizes, and bulk purchases for large-scale projects.
Key Features of Chain Link Fence
- Corrosion Resistance — Hot-dip galvanized coating (40-60g/m²) or PVC coating (0.4-0.6mm) protects against rust in harsh outdoor environments for 10-20 years.
- Flexible Installation — The woven diamond pattern adapts to slopes and uneven terrain without special panels or cutting.
- Multiple Edge Types — Choose knuckled (safe, smooth edge), twisted (higher security), or knuckled-and-twisted (top and bottom) to match your security needs.
- Factory-Direct Pricing — As the manufacturer, ABX Metal eliminates middleman costs and offers wholesale rates for bulk and project orders.
- Quick Delivery — We maintain stock for standard sizes and offer 15-30 day lead times for custom orders, shipping globally from our factory.
Technical Specifications for Chain Link Fence
| Attribute | Specification |
|---|---|
| Material | Low carbon steel wire, Stainless steel, Aluminum alloy |
| Wire Diameter (BWG) | BWG 6, 7, 9, 10, 11, 12 |
| Mesh Size | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 1″ |
| Fence Height | 24″ – 120″ (610mm – 3048mm) |
| Roll Length | 25 ft – 50 ft (7.6m – 15.2m) |
| Surface Treatment | Hot-dip galvanized, PVC coated (green, black, white) |
| Edge Type | Knuckled, Twisted, Knuckled + Twisted |
| Tensile Strength | 350-550 N/mm² |
| Post & Top Rail | Thick-wall steel pipe, included or separate |
Chain Link Fence Surface Treatment & Finish
ABX Metal offers two primary surface treatment options for our chain link fence products. Hot-dip galvanizing provides a zinc coating that protects the steel wire from corrosion. The zinc layer thickness ranges from 40-60g/m² for standard grade to 70-270g/m² for heavy-duty applications. This treatment gives the fence a classic silver appearance and protects against rust for 10-15 years in normal environments.
PVC coating adds a polymer layer over the galvanized wire. The coating thickness is 0.4-0.6mm in standard production. PVC coated chain link fence comes in green, black, or white to match your site design. The PVC layer adds extra corrosion protection and improves the visual appearance. Expected service life reaches 15-20 years outdoors.
Applications of Chain Link Fence

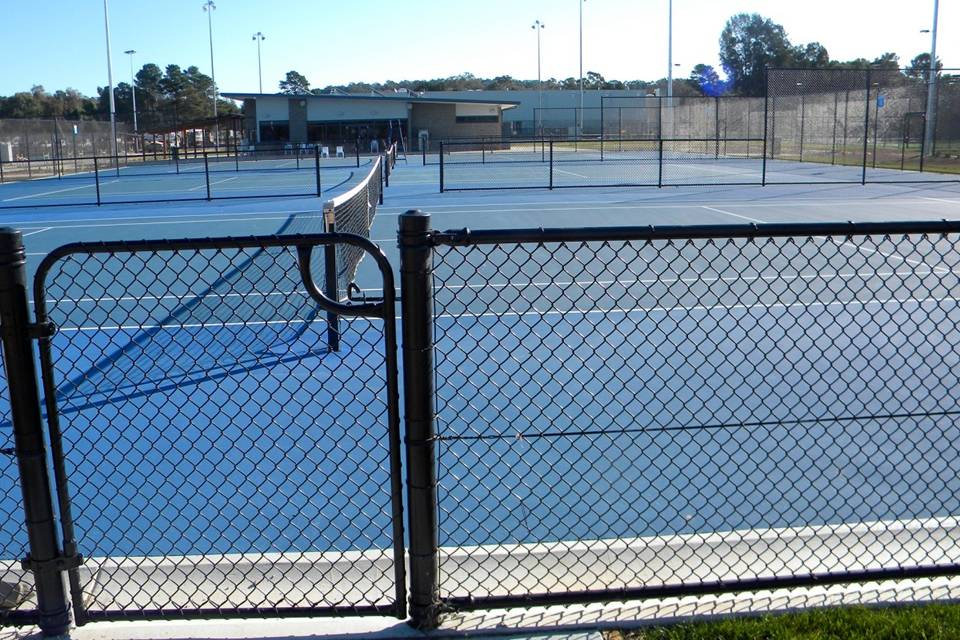

Sports Fields & Recreation Areas — Chain link fence encloses tennis courts, baseball fields, and playgrounds. The open weave maintains visibility while keeping balls inside the playing area.

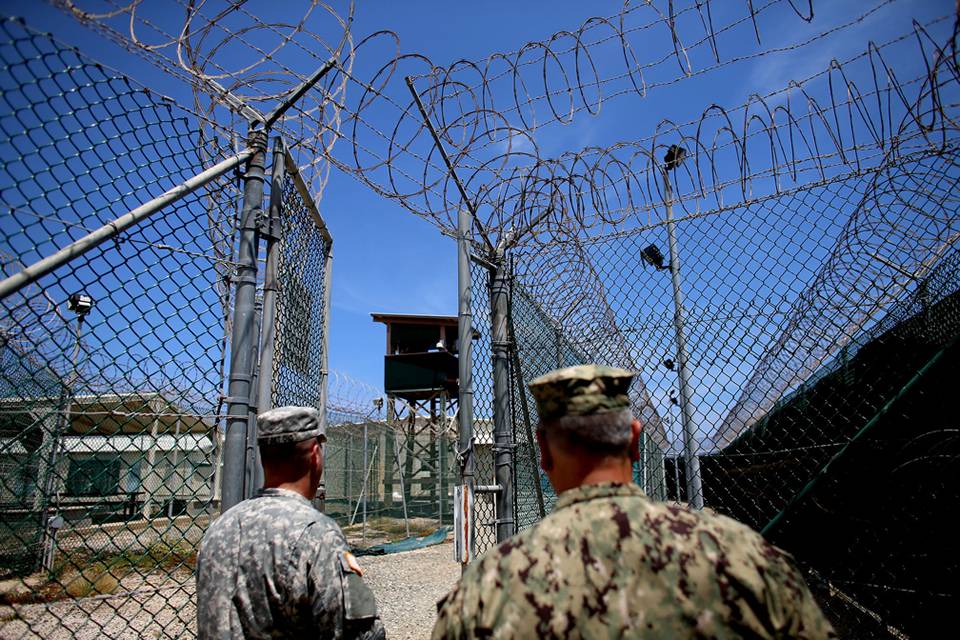

Industrial & Commercial Perimeters — Factories, warehouses, and logistics centers use chain link fence for cost-effective boundary security. Add barbed wire on top for higher protection.

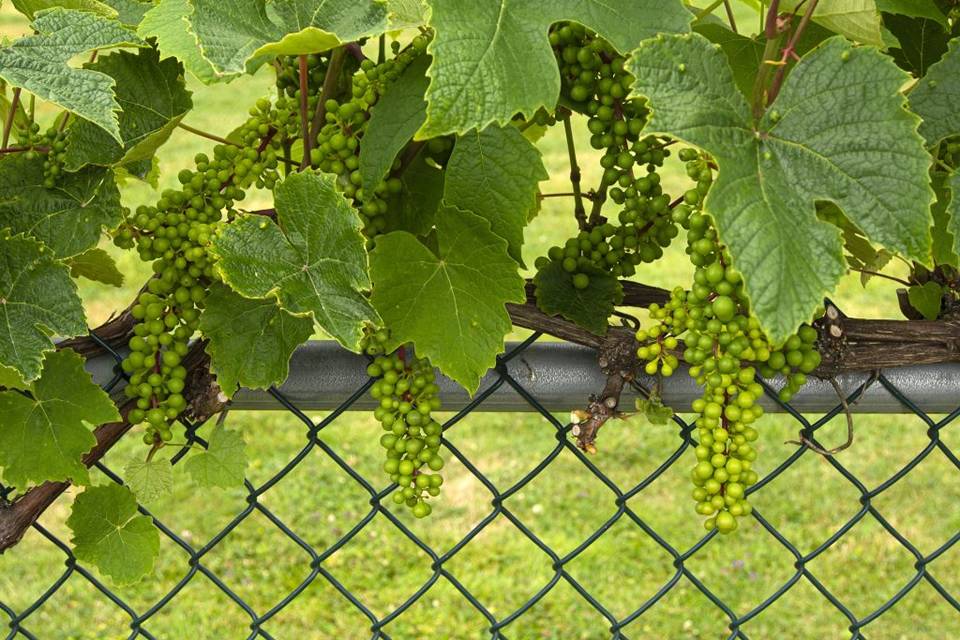

Agriculture & Farms — Farmers use chain link fence to contain livestock and mark property boundaries. The flexible mesh handles animal impact without breaking.
Residential Boundaries — Homeowners choose PVC-coated chain link fence in green or black for a neat, low-maintenance yard boundary that does not block the view.
Temporary Construction Sites — Portable fence panels create secure perimeters around construction zones. The panels move easily as the project progresses.
Quality Assurance
ABX Metal operates under ISO-certified quality management. Every production batch receives tensile strength testing, coating thickness measurement, and mesh size verification. We provide mill test reports and conform to ASTM A392, ASTM F668, and EN 10244 standards. Our QC team inspects 100% of finished products before packaging.
We maintain full production traceability. Each roll carries a production batch number. If you need certification documents for customs clearance or project compliance, we provide them promptly. Our export experience covers 30+ countries with smooth customs clearance records.
Packing & Shipping
ABX Metal packs chain link fence rolls in waterproof paper and woven bags to prevent moisture damage during ocean transport. We load containers carefully to maximize space utilization and minimize shipping costs. For bulk orders, we offer pallet packing or loose loading based on your preference. Typical lead time is 15-25 days after order confirmation.
Frequently Asked Questions
What is the minimum order quantity for chain link fence?
ABX Metal accepts orders starting from 1 roll for sampling. Standard MOQ for正式 orders is 50 rolls. For wholesale and project-scale purchases, we offer tiered pricing based on order volume. Contact our sales team for a customized quotation tailored to your project requirements.
Can you provide custom mesh sizes and heights?
As a direct manufacturer, ABX Metal fabricates chain link fence to custom mesh sizes and heights. Our factory supports OEM and ODM orders with full engineering documentation. We produce non-standard mesh from 1/4 inch to 2 inches and heights up to 120 inches. Typical lead time for custom orders is 20-30 working days.
What surface treatment lasts longest outdoors?
PVC-coated chain link fence outlasts standard galvanized fence in most environments. The PVC layer adds extra protection against UV, chemicals, and abrasion. In coastal or high-humidity areas, we recommend heavy-duty galvanizing (≥270g/m²) plus PVC coating for maximum service life exceeding 20 years.
Do you supply posts and installation accessories?
Yes, ABX Metal supplies matching posts, top rails, tension wires, brackets, and all installation hardware. We calculate the complete bill of materials for your fence layout. This ensures you receive everything needed for installation without extra procurement. We also provide installation guides and video support.
How long does shipping take to my country?
Shipping time depends on your location and order size. Sea freight to major ports typically takes 20-40 days. We work with reliable freight forwarders and handle export documentation. For urgent orders, we offer express shipping options. Our sales team provides accurate shipping timelines and CIF/FOB quotes for your location.
