Description
ABX Metal, a direct manufacturer, supplies formwork edges protection barrier systems for fall prevention during concrete pouring operations. Our factory produces dedicated clamping systems for both H20 timber beams and aluminum beams used in formwork construction. These barriers mount on primary or secondary beams to protect workers during concrete placement, vibration, and finishing operations.

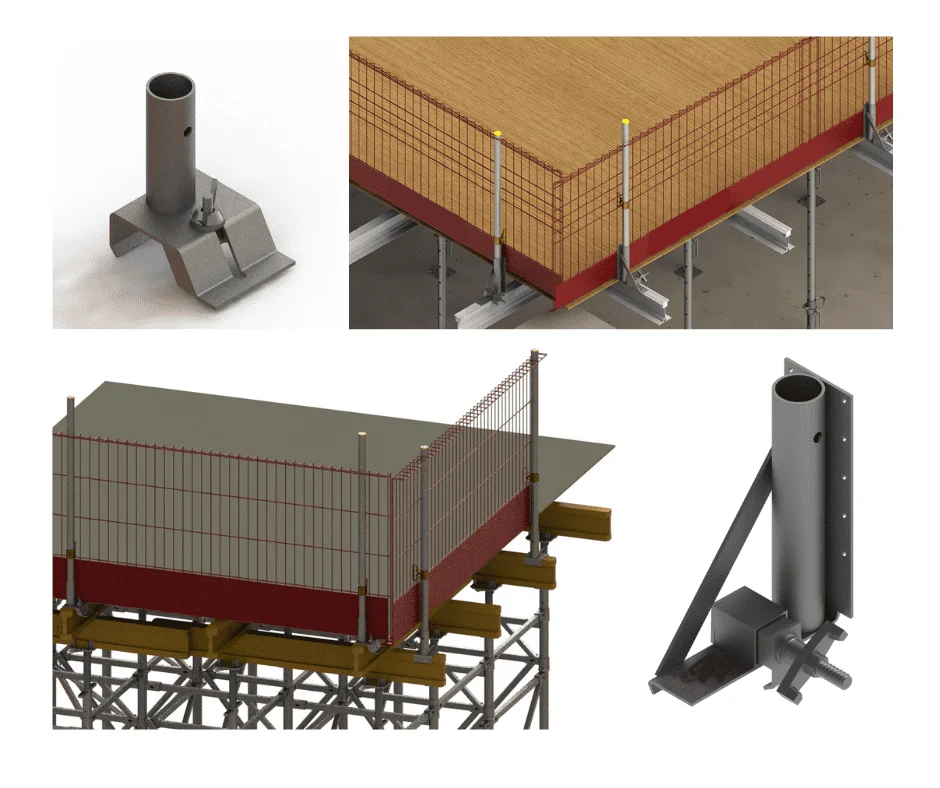

Formwork Edge Protection Barrier Solutions
ABX offers two main formwork protection systems. We provide free design services always. Detailed drawings accompany each system. Calculations ensure structural compliance. Advanced 3D drawings visualize installations. We help keep work zones completely safe. Security remains our top priority

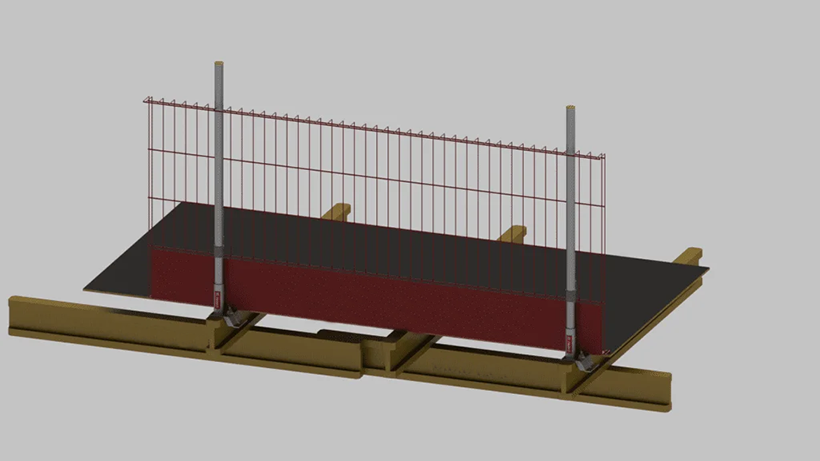

Edge Protection for Wood Structure
This system meets required load criteria. Formwork decking arrangements vary widely. ABX engineered clamps for all timber beams. They fit various beam section sizes perfectly.

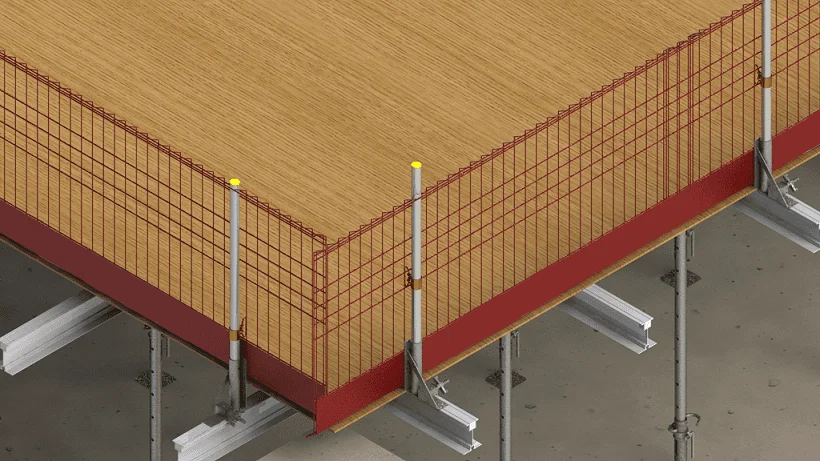

Edge Protection for Aluminum Structure
We designed this system specifically for aluminum. Its best feature is lightweight construction. The system adapts to most beam sizes easily.

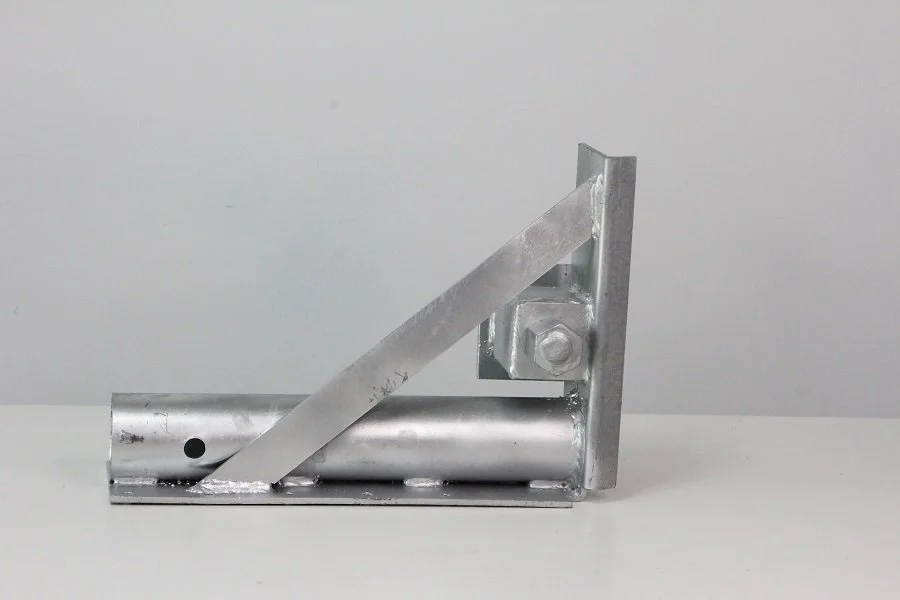

ABX Formwork Edge Protection Barrier Clamp Details

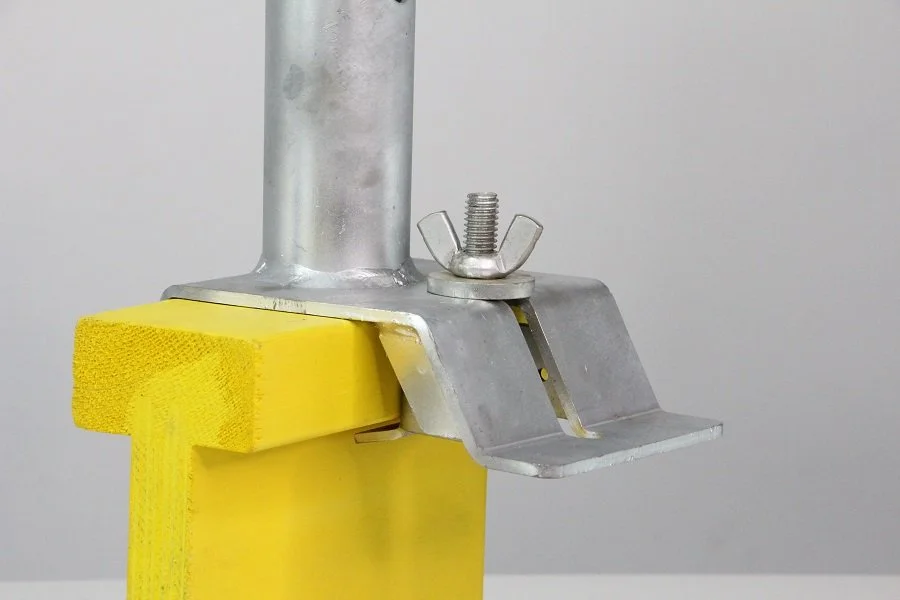

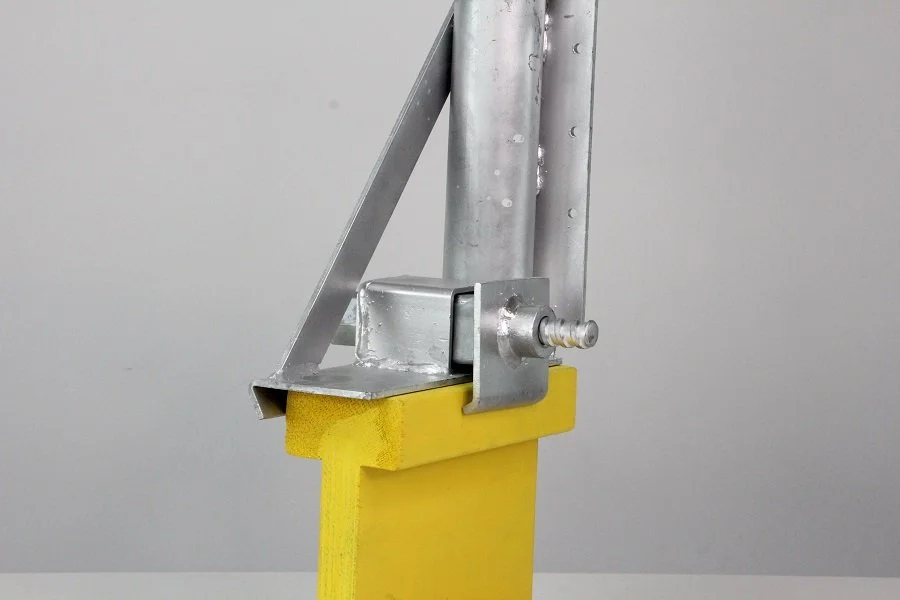

Timber beam clamps fix to H20 beams securely. We offer clamps for 40mm width beams. Clamps for 60mm width beams are also available.

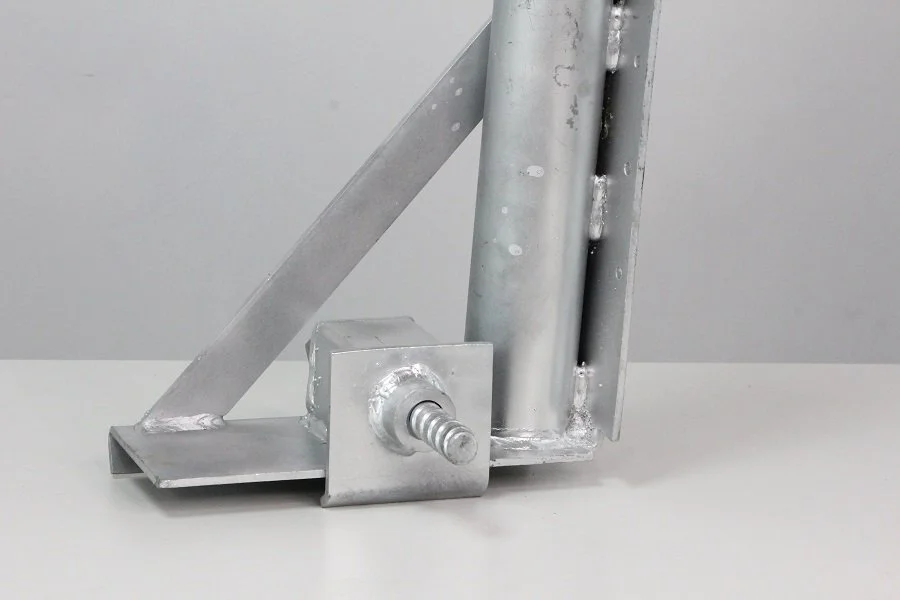

Aluminum beam clamps feature adjustable designs. They suit 60mm to 150mm width beams. ABX clamps match various decking systems perfectly. We engineered them for multiple extrusion sections.
Key Features of Formwork Edges Protection Barrier
Dual Beam Compatibility — Dedicated clamp systems for H20 timber beams and aluminum formwork beams. Timber beam clamps come in 40 mm and 60 mm widths. Aluminum beam clamps adjust from 60 mm to 150 mm width. Each clamp profile matches its beam type for secure, damage-free attachment.
Primary and Secondary Beam Mounting — Install barriers on primary load-bearing beams or secondary distribution beams. Clamp position adapts to your formwork layout. This flexibility means one system covers all beam orientations on a typical formwork deck.
Precise Clamp Positioning — Clamps require minimum 150 mm clearance from beam ends. Installers position clamps at the correct angle relative to barrier panels. ABX Metal provides detailed installation instructions specifying exact clamp spacing and orientation.
Full Engineering Support — ABX Metal provides free design services for project-specific formwork applications. Our engineers deliver detailed drawings, structural calculations, and 3D visualization of the complete barrier system. This ensures your formwork edge protection meets all regulatory requirements.
Welded Wire Mesh Panels — Standard mesh barrier panels with integrated toe boards prevent both worker falls and debris drops. Panels install with quick-release connections for rapid repositioning as formwork advances.
Factory-Direct Custom Fabrication — As the manufacturer, ABX Metal produces formwork edges protection barrier components to your specifications. We fabricate custom clamps for non-standard beam profiles. OEM orders accepted with project-specific packaging and documentation.
Technical Specifications for Formwork Edges Protection Barrier
| Attribute | Timber Beam Type | Aluminum Beam Type |
|---|---|---|
| Beam Compatibility | H20 timber beams | Aluminum formwork beams |
| Clamp Width | 40 mm / 60 mm | 60 mm – 150 mm (adjustable) |
| Min. Distance from Beam End | 150 mm | |
| Panel Height | 1100 mm / 1300 mm | |
| Panel Length | 1300 mm / 1700 mm / 2200 mm / 2400 mm | |
| Wire Diameter | 5 mm / 6 mm / 8 mm | |
| Surface Treatment | Hot-dip galvanized + powder coating | |
| Compliance | EN 13374 | |
| Installation Support | Drawings, structural calculations, 3D visualization provided free | |
Why Choose Formwork Edges Protection Barrier?
Concrete placement operations expose workers to fall risks along formwork perimeters. ABX Metal engineered formwork edges protection barrier systems specifically for this phase. Our factory produces beam clamps for the two dominant formwork beam types worldwide: H20 timber beams and aluminum beams. Each clamp design fits the specific beam profile, ensuring secure attachment without beam damage.
Installers mount clamps on primary or secondary beams at least 150 mm from beam ends. Barrier panels then drop into pre-positioned posts. This rapid-deployment workflow keeps edge protection synchronized with formwork assembly. For wholesale buyers, we customize clamp dimensions to match non-standard beam profiles. Our engineering team provides structural calculations and 3D installation drawings for project-specific formwork configurations.
Formwork Edges Protection Barrier Applications
Slab Formwork Edge Protection
Mount barriers along formwork perimeters before concrete placement. Workers operate safely near edges during concrete pouring, vibration, and leveling. Relocate panels as formwork advances to the next pour section.
Beam and Column Formwork Protection
Secure primary beam edges during reinforcement placement and concrete work. Clamp systems fit both main beams and secondary distribution beams. This comprehensive coverage protects workers at all formwork edge positions.
Wall Formwork Top Edge Protection
Install barriers along wall formwork top edges during concrete placement and curing. This protects workers accessing formwork tops for vibration and finishing operations.
Packing & Shipping
ABX Metal packs formwork edges protection barrier panels, posts, and clamps on steel pallets. Beam clamps ship in labeled cartons organized by type and size. Our export team provides container loading plans and manages FCL/LCL shipping worldwide.
Quality Assurance
Our factory QC process includes clamp fitment testing on H20 timber and aluminum beam samples, weld integrity verification, and coating thickness measurement. We provide EN 13374 compliance documentation with wholesale orders. Full engineering calculation packages available for project specifications.
How do I choose between timber and aluminum beam clamps for formwork edges protection barrier?
Select the timber beam clamp for H20 timber formwork systems. Choose the aluminum beam clamp for aluminum formwork systems. Provide your beam specifications during inquiry. Our technical team confirms compatibility and recommends the correct clamp type.
What pre-installation checks does formwork edges protection barrier require?
Inspect beam webs for damage or deformation before clamp attachment. Verify beams sit securely on their supports. Confirm formwork structural stability. Check that clamp positions meet the minimum 150 mm distance from beam ends per ABX Metal installation guidelines.
Does ABX Metal provide engineering calculations for formwork edge protection?
Yes, we provide free detailed drawings, structural calculations, and 3D visualization for your formwork configuration. Submit your project drawings during inquiry. Our engineering team returns a complete design package confirming EN 13374 compliance for your specific application.
Can you fabricate custom clamps for non-standard formwork beams?
Absolutely. As a direct manufacturer, ABX Metal produces custom beam clamps for non-standard profiles. Provide your beam cross-section dimensions and material. We design, prototype, and manufacture clamps matched to your specific formwork system.
