Description
ABX Metal, a direct manufacturer, supplies steel structure edge protection barrier systems for fall prevention during structural steel erection and steel-frame building construction. Our factory produces clamp-on and pre-installation barrier systems that attach directly to steel I-beams without drilling or welding. These systems meet EN 13374, OSHA, and ANSI standards for temporary edge protection.
Steel Structure Edge Protection Barrier Solutions
We offer several operation methods for steel structures. Choose top bolted systems for secure attachment. Clamped systems provide quick installation. Welded systems offer permanent horizontal steelwork connections.
These systems classify by their fixing operation.

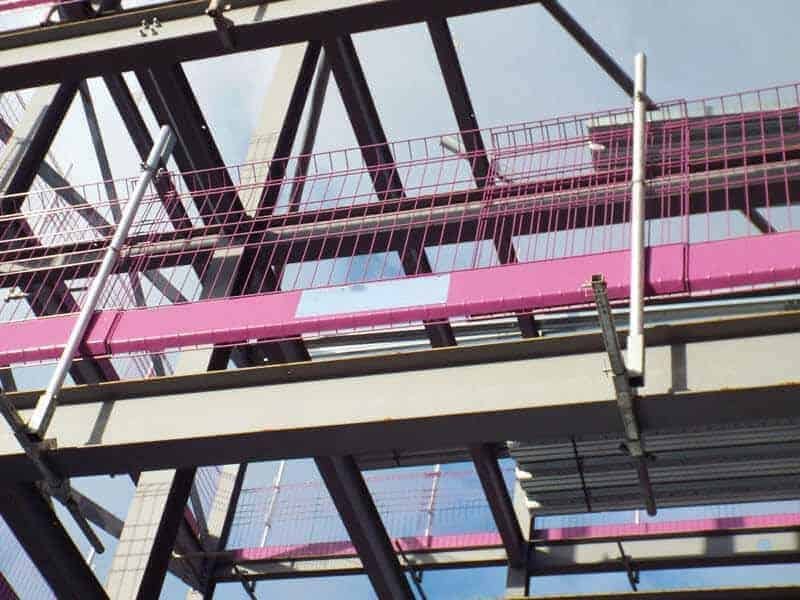

CLAMP ON STEEL BEAMS
This method uses I-Beam brackets as fixing components. Workers clamp them to horizontal beams easily. An adjustable screw simplifies the setting process.

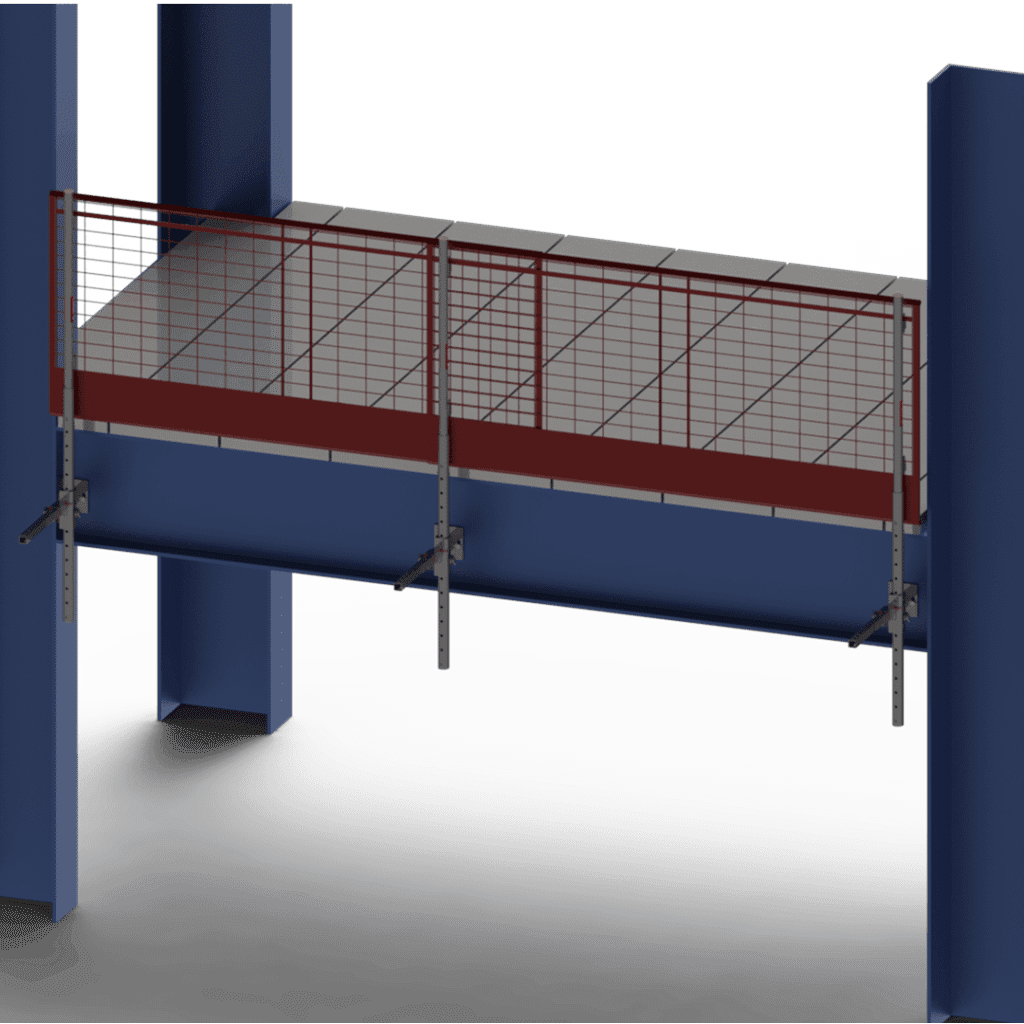

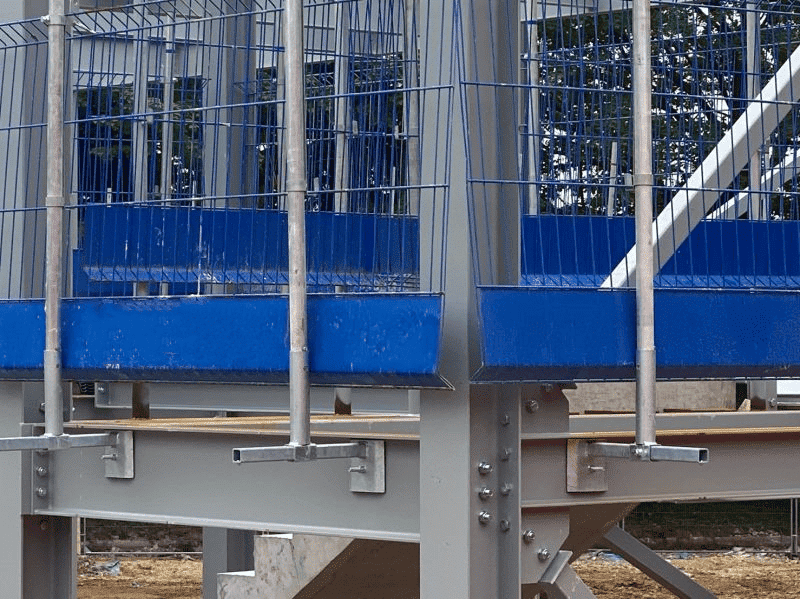

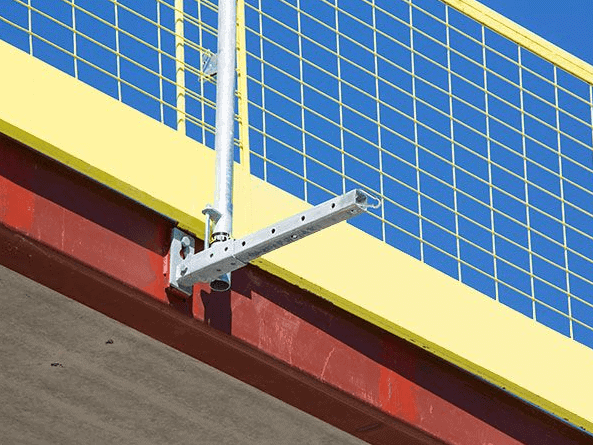

PRE-INSTALLATION ON STEEL BEAMS
This approach uses I-Beam Facade Brackets. Workers bolt them onto steel beams directly. Teams can complete setup at ground level beforehand.
Why Choose Steel Structure Edge Protection Barrier?
Structural steel erection exposes workers to fall hazards from the moment the first beam is lifted into position. ABX Metal designed the steel structure edge protection barrier to address this risk at its source. Our factory offers two installation approaches. The clamp-on system uses I-beam brackets with adjustable screws that grip steel flanges without drilling. The pre-installation system mounts brackets at ground level before lifting steel assemblies into place.
Both approaches eliminate at-height hazards during barrier installation. Workers secure brackets and posts while steel assemblies are still on the ground. The crane then lifts the protected steel section into position with edge protection already in place. This workflow dramatically reduces fall exposure during the most dangerous phase of steel construction. As a direct manufacturer, we provide factory-direct pricing and custom configurations for wholesale project orders.
Key Features of Steel Structure Edge Protection Barrier
Two Installation Methods — Clamp-on brackets attach to erected steel with adjustable screws. Pre-installation brackets mount at ground level for crane-lifted placement. Choose the method that matches your construction sequence and safety protocols.
I-Beam Bracket Design — Purpose-engineered brackets grip standard I-beam flange profiles. Adjustable screw mechanisms accommodate minor dimensional variation. Brackets install and remove without damaging structural steel coating or fireproofing.
No-Drill Attachment — Both clamp-on and pre-installation systems avoid drilling into structural steel. This preserves beam integrity and coating protection. It also eliminates the need for hot work permits during barrier installation.

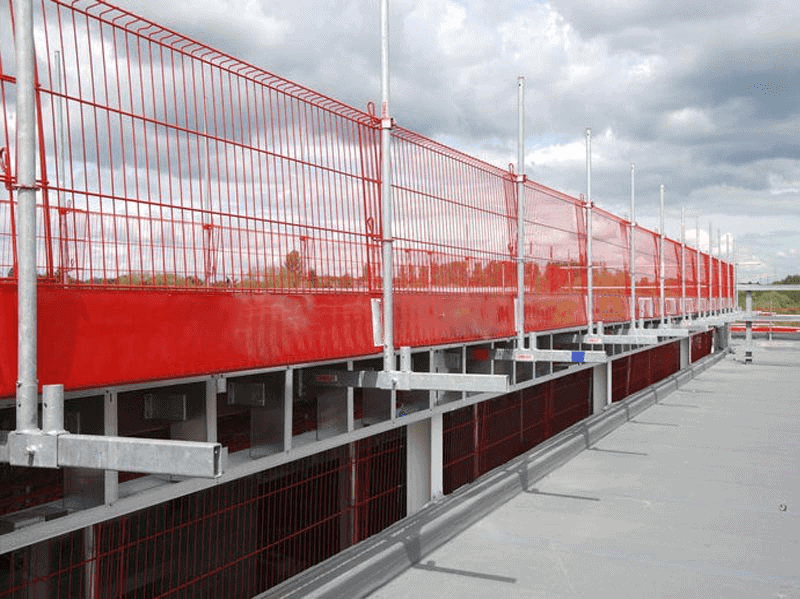

Welded Wire Mesh Panels — Rigid mesh panels provide both fall and debris protection. 5-8 mm wire diameters deliver impact resistance per EN 13374. Integrated toe boards prevent tools from falling through the barrier. Panels connect to posts with quick-release clamps.
Pre-Installation Workflow — Crews mount brackets and barriers to steel beams at ground level. The crane lifts pre-protected assemblies into final position. Edge protection is operational the moment steel lands. This eliminates the unprotected-edge window entirely.
Factory-Direct OEM Supply — ABX Metal manufactures steel structure edge protection barrier systems to your project dimensions. Custom bracket designs accommodate non-standard beam profiles. Wholesale pricing with full compliance documentation.
Technical Specifications for Steel Structure Edge Protection Barrier
| Attribute | Specification |
|---|---|
| Panel Height | 1100 mm / 1300 mm |
| Panel Length | 1300 mm / 1700 mm / 2200 mm / 2400 mm |
| Wire Diameter | 5 mm / 6 mm / 8 mm |
| Mesh Size | 50×50 mm / 75×75 mm / 50×100 mm / 50×150 mm / 50×200 mm |
| Post × Wall | 48×1.5 mm / 48×2.0 mm |
| Mounting Systems | Clamp-On (I-Beam Brackets) / Pre-Installation (Facade Brackets) |
| Surface Treatment | Hot-dip galvanized + powder coating |
| Bracket Compatibility | Standard I-beam flange profiles (custom brackets available) |
| Compliance | EN 13374, OSHA, ANSI |
| Material | Low-carbon steel, 100% recyclable |
Steel Structure Edge Protection Barrier Applications

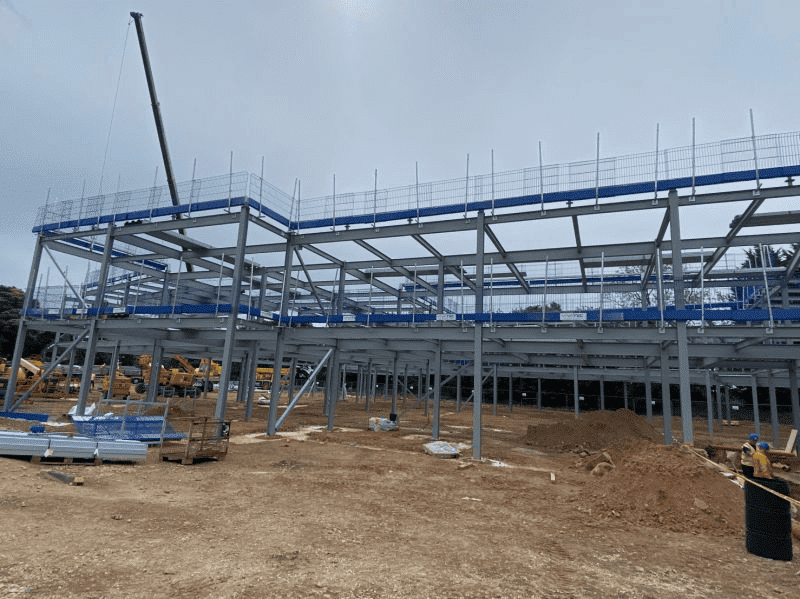

High-Rise Steel Frame Construction
Pre-install barriers on steel assemblies at ground level. Lift protected frames into position floor by floor. This eliminates high-altitude barriers installation and keeps edge protection continuous as the steel structure rises.
Industrial Plant and Warehouse Erection
Clamp barriers directly onto erected steel columns, beams, and perimeter members. The no-drill attachment preserves structural integrity and fire protection coatings. Adjustable brackets accommodate common industrial I-beam profiles.
Bridge and Infrastructure Steelwork
Protect workers on bridge girder edges, truss perimeters, and elevated steel platforms. Galvanized plus powder-coated finish withstands outdoor exposure throughout multi-month infrastructure projects.
Packing & Shipping
ABX Metal packs steel structure edge protection barrier panels, posts, and brackets on steel pallets with waterproof wrapping. Brackets and fasteners ship in clearly labeled cartons. Our export team manages global FCL and LCL logistics with full documentation.
Quality Assurance
Our factory QC process includes bracket fitment testing on standard I-beam profiles, weld integrity verification, and coating thickness measurement. EN 13374 compliance documentation accompanies all wholesale orders. Batch traceability records available.
Can the steel structure edge protection barrier be installed without drilling?
Yes, both mounting systems avoid drilling entirely. The clamp-on system uses adjustable screws to grip the beam flange. The pre-installation system bolts brackets at ground level where drilling access is unrestricted. Neither method requires drilling into erected structural steel.
Does the clamp-on system work on all steel beam sizes?
Standard I-Beam Brackets accommodate common flange widths and thicknesses. For non-standard profiles, ABX Metal fabricates custom brackets to your beam specifications. Provide beam section drawings with your inquiry for a confirmed compatibility assessment.
How does the pre-installation method improve safety compared to post-erection installation?
Pre-installation eliminates高空作业 for barrier setup. Workers work at ground level to mount barriers. When the crane lifts the protected steel assembly, edge protection is immediately operational upon placement. There is zero unprotected-edge time during the critical erection sequence.
What is the minimum order quantity for steel structure edge protection barrier?
Standard MOQ varies by configuration and bracket type. Contact our export team with your project requirements for current MOQ and wholesale pricing. We accommodate trial orders for first-time buyers evaluating product compatibility.
