Description
ABX Metal, a direct manufacturer, produces concrete slab edges protection barrier systems for fall prevention during multi-story building construction. Our factory fabricates welded wire mesh barrier panels with five mounting configurations: Safedge Bolt Down, TG Bolt Down, Slab Grab, Edge Bracket, and TG Edge Bracket. All systems comply with EN 13374, OSHA 1926.502, and AS/NZS 4994 standards.
Professional Concrete Edge Protection Barrier Solutions
As a leading temporary edge protection manufacturer, we offer a comprehensive range of concrete edge protection barrier solutions engineered to adapt seamlessly to diverse concrete frame structures. Below, we outline our most common systems to help you select the ideal safety configuration for your project.
Because structural requirements vary, we highly recommend consulting our technical engineering team for tailored project advice. Alternatively, you can submit your project blueprints or structural drawings, and our experts will customize a complete edge protection system to match your exact specifications.
Bolt‑Down and Slab Grab Barrier for Concrete Slab Edges

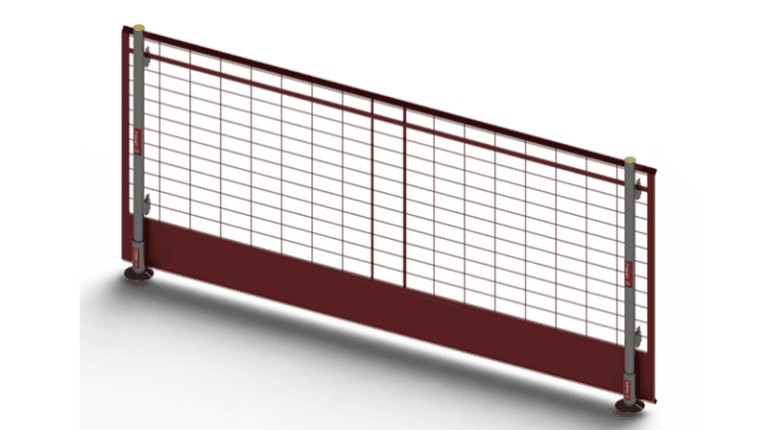

1. Safedge Bolt Down Edge Protection Barrier
Optimized Description: The Safedge Bolt Down Edge Protection Barrier is engineered for maximum stability and heavy-duty perimeter safety on concrete substrates. This high-performance system features a streamlined, three-component modular assembly: a heavy-duty socket base for secure floor anchoring, robust Safedge posts for rigid vertical support, and high-strength Safedge mesh barriers to deliver comprehensive debris and fall protection. It is the ideal bolt-on safety solution for high-rise concrete frame construction.

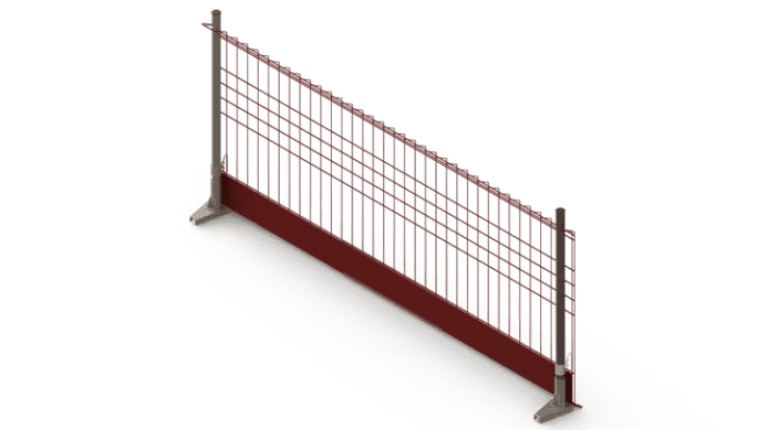

2. TG Bolt Down Edge Protection Barrier
Optimized Description: Designed for rapid deployment and uncompromised site safety, the TG Bolt Down Edge Protection Barrier offers a highly integrated edge clamping solution. This system seamlessly combines specialized TG Feet for rigid structural attachment, heavy-duty TG posts that anchor firmly to the concrete frame, and a resilient TG mesh barrier engineered to absorb impacts and ensure strict site compliance.

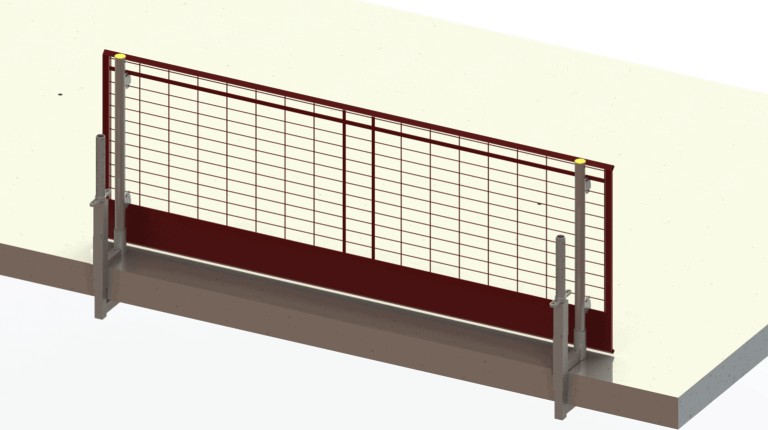

3. Slab Grab Edge Protection Barrier
Optimized Description: The Slab Grab Edge Protection Barrier is a highly versatile, non-penetrating safety solution engineered for multi-scenario construction flexibility. Featuring a dual-orientation clamping mechanism, this system delivers exceptional stability whether deployed horizontally to grip slab edges or vertically onto parapets and spandrel beams. It provides a reliable, re-usable edge guard without the need for drilling or surface damage.
Why Choose Concrete Slab Edges Protection Barrier?
Working near exposed slab edges creates the highest-risk scenario on any construction site. ABX Metal addresses this with purpose-built concrete slab edges protection barrier systems. Our factory produces five mounting configurations to match every slab condition. Bolt-down sockets suit standard concrete edges. Slab Grab clamps work horizontally or vertically on slab perimeters. TG and Edge Bracket systems adapt to precast panels, formwork edges, and irregular geometries.
As a direct manufacturer, we engineer each system for rapid installation. Workers install bolt-down sockets during slab preparation. Barrier panels and posts then drop into pre-installed sockets. This sequential workflow keeps edge protection ahead of each construction phase. Factory-direct pricing ensures competitive project costs for wholesale buyers.
Key Features of Concrete Slab Edges Protection Barrier
Five Mounting Configurations — Safedge Bolt Down for standard slab edges with socket bases. TG Bolt Down for integrated base-to-post connection. Slab Grab for clamp-on installation in horizontal or vertical orientation. Edge Bracket for precast panels and timber frame edges. TG Edge Bracket for attachment to any vertical surface.
Welded Wire Mesh Barrier Panels — Steel wire mesh panels provide fall containment superior to traditional guardrails. The mesh prevents both worker falls and debris drops. Wire diameters from 5 mm to 8 mm deliver impact resistance across EN 13374 Class A, B, and C requirements.
Integrated Toe Board Design — Each panel includes a built-in toe board running the full panel length. This prevents tools, fasteners, and construction debris from falling to lower levels. No separate toe board installation required.
Dual Surface Protection — Hot-dip galvanizing provides base corrosion resistance. Powder coating adds color coding for safety visibility. Standard colors include yellow, red, and orange for high-visibility hazard marking. Custom RAL colors available for OEM orders.
Rapid Sequential Installation — Install socket bases during slab preparation. Drop posts and barrier panels into pre-placed sockets after formwork stripping. This workflow keeps edge protection in place before workers access exposed edges. It significantly reduces fall exposure time.
Factory-Direct Manufacturing — ABX Metal controls the complete production chain from wire drawing to final assembly. Our QC team verifies dimensional accuracy, weld strength, and coating uniformity on every batch. Compliance documentation accompanies all wholesale orders.
Technical Specifications for Concrete Slab Edges Protection Barrier
| Attribute | Specification |
|---|---|
| Panel Height | 1100 mm / 1300 mm (custom sizes available) |
| Panel Length | 1300 mm / 1700 mm / 2200 mm / 2400 mm |
| Wire Diameter | 5 mm / 6 mm / 8 mm |
| Mesh Size | 50×50 mm / 75×75 mm / 50×100 mm / 50×150 mm / 50×200 mm |
| Post Diameter × Wall | 48×1.5 mm / 48×2.0 mm |
| Mounting Systems | Safedge Bolt Down / TG Bolt Down / Slab Grab / Edge Bracket / TG Edge Bracket |
| Surface Treatment | Hot-dip galvanized + powder coating |
| Compliance Standards | EN 13374, OSHA 1926.502, AS/NZS 4994, AS/NZS 1170 |
| Material | Low-carbon steel welded wire mesh, 100% recyclable |
Concrete Slab Edges Protection Barrier Applications
Multi-Story Commercial Buildings
Protect slab edges on high-rise office and residential towers. Bolt-down sockets install during slab preparation. Posts and barrier panels follow immediately after formwork removal. This workflow maintains continuous edge protection as the building rises.
Industrial and Warehouse Construction
Secure large-span slab edges during structural steel erection and roof installation. Slab Grab clamps adapt to varying slab thickness. Workers reposition barriers as construction phases progress.

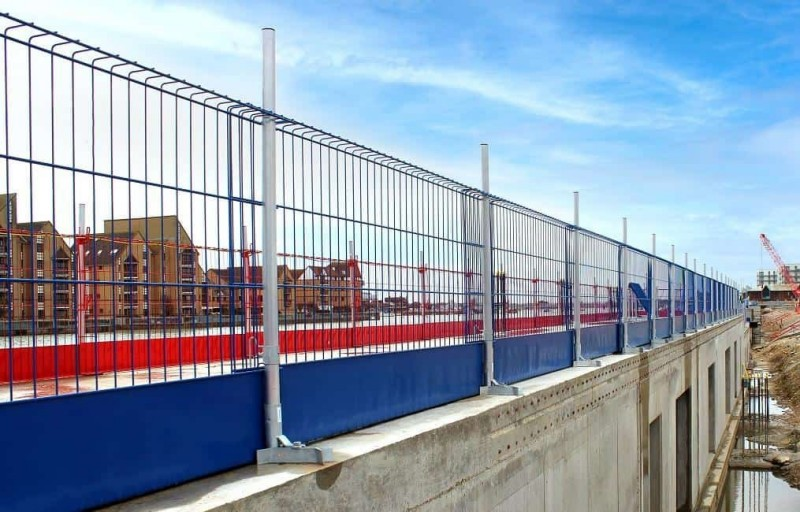

Infrastructure Projects
Protect bridge deck edges, retaining wall tops, and platform perimeters. Edge Bracket systems suit precast concrete elements common in infrastructure construction. Galvanized finish resists corrosion from exposure to the elements.
Precast Panel Installation

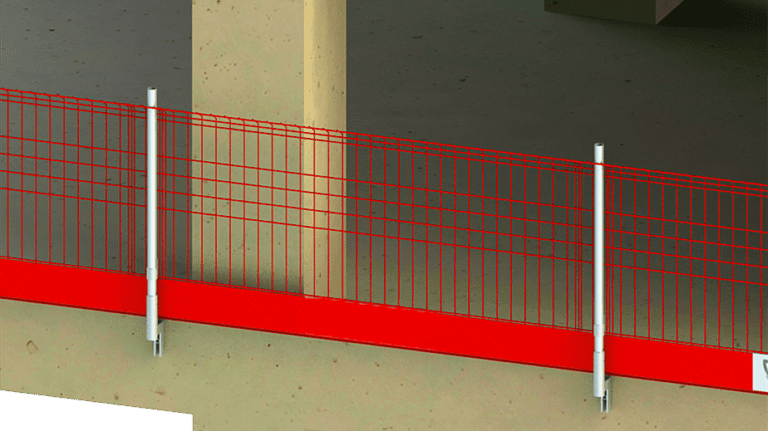

TG Edge Bracket systems mount to any vertical precast surface. This provides edge protection during panel erection and connection work. The system adapts to irregular panel geometries.
Packing & Shipping
ABX Metal packs concrete slab edges protection barrier panels on steel pallets. Posts, sockets, clamps, and brackets ship in labeled cartons within the same container. Our export team provides container loading plans optimized for your order. We ship FCL and LCL to ports worldwide with full documentation.
Quality Assurance
Our factory QC process includes dimensional verification, weld integrity testing, and load testing to EN 13374 standards. We provide full compliance documentation with wholesale orders. Material certificates and batch traceability records available for project specifications.
Frequently Asked Questions
Which mounting system should I choose for my concrete slab edges protection barrier?
Bolt-down sockets work best for slab edges accessible during concrete pouring. Slab Grab clamps suit post-pour installation where drilling is impractical. Edge Brackets fit precast panels and timber frame edges. Contact our technical team with your slab conditions for a specific recommendation.
Can the Slab Grab system mount both horizontally and vertically?
Yes, the Slab Grab system operates in both orientations. Horizontal mounting clamps onto the slab edge from above. Vertical mounting grips the slab surface from the side. This dual-orientation capability covers most slab edge geometries on a typical construction site.
How do edge protection barriers meet OSHA and EN standards?
Our concrete slab edges protection barrier complies with OSHA 1926.502 (fall protection systems criteria) and EN 13374 (temporary edge protection systems). We provide compliance documentation with every wholesale order. Third-party testing reports available upon request.
What is the lead time for custom concrete slab edges protection barrier orders?
Standard configurations ship within 15-25 working days. Custom panel sizes, colors, or mounting systems may extend lead time. OEM and ODM orders receive priority production scheduling. Contact our export team for a firm delivery date based on your specifications.
Can ABX Metal supply replacement components for existing systems?
Yes, we stock replacement posts, sockets, clamps, brackets, and barrier panels. For ongoing projects, we recommend ordering spare components alongside your initial purchase. This ensures uninterrupted edge protection throughout the construction program.
