Description
ABX Metal, a direct manufacturer, produces the edge protection barrier with compression post system for no-anchor fall protection between concrete floor slabs. Our factory engineers this freestanding compression system to secure barrier posts through friction alone — no drilling, bolting, or anchoring required. The system spans floor-to-soffit heights from 2.4 m to 3.5 m and complies with EN 13374, OSHA, and ANSI safety standards.

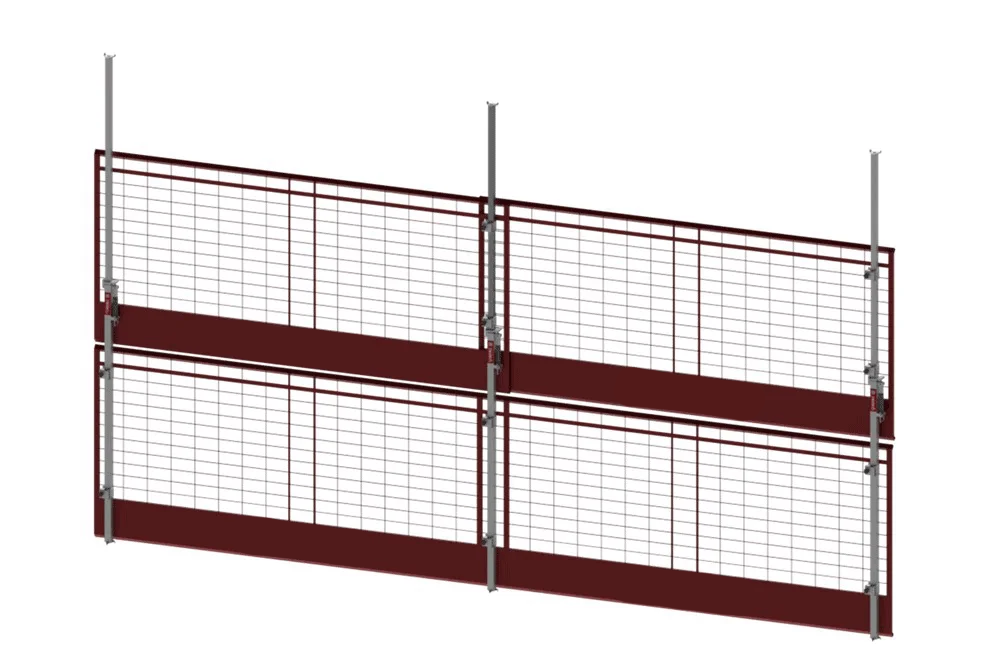

Components of Compression Post Edge Protection Barrier

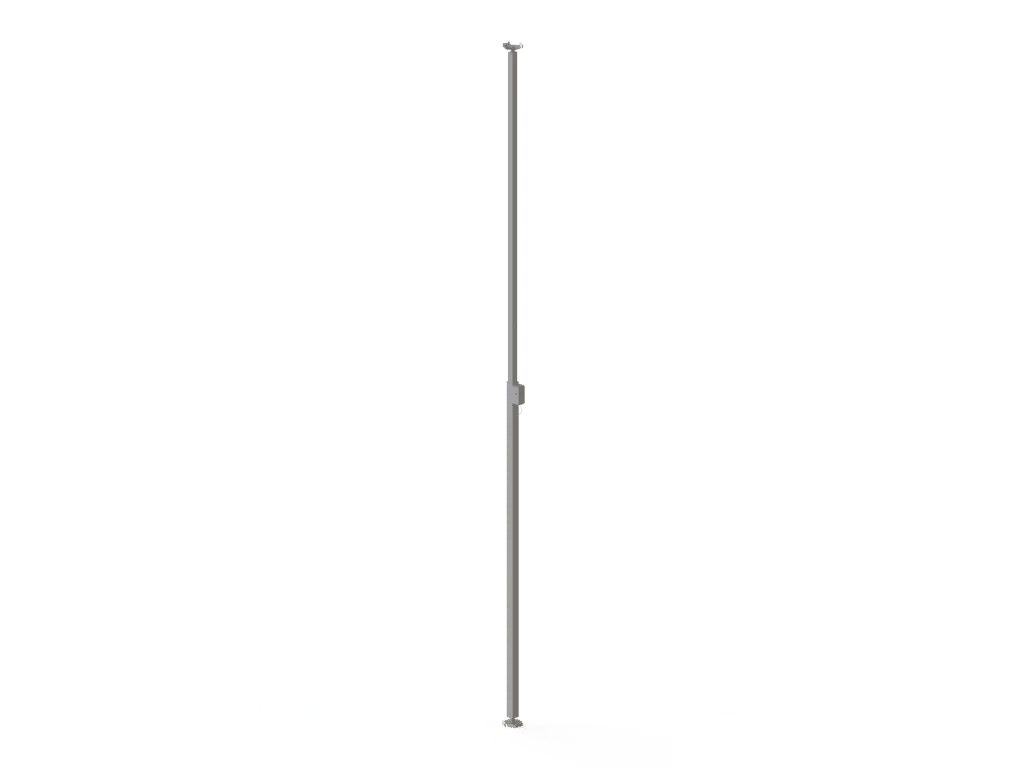

| Compression Post Unit This unit provides slab to soffit compression effectively. It accommodates heights from 2.4m (8′) to 3.5 m (11’6″). Hot dipped galvanizing protects against corrosion. |

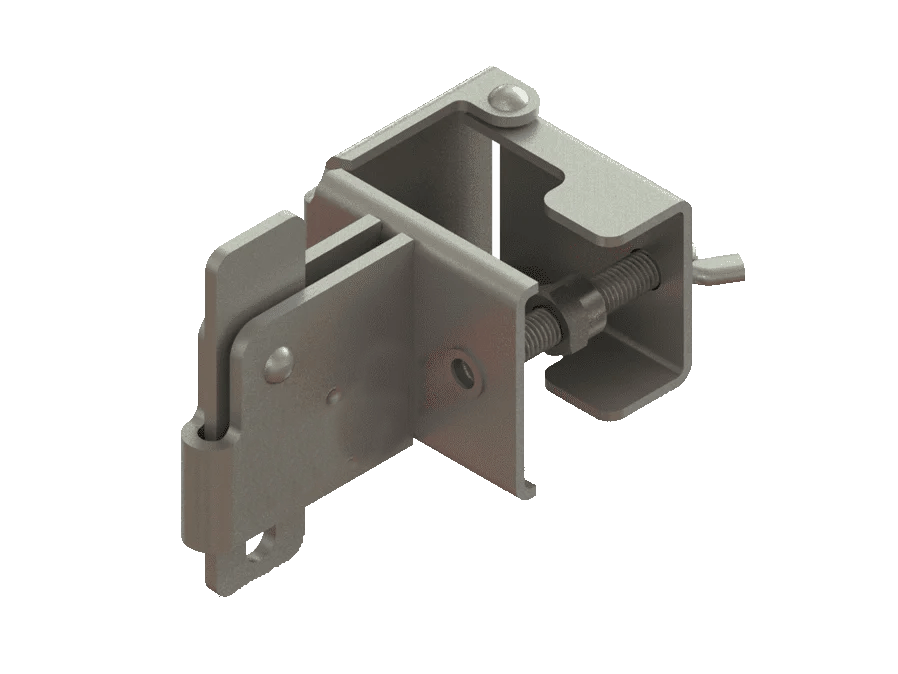

Compression Post Barrier Clip This slider hook offers strong but lightweight attachment. Workers can adjust it to any position on the post. |

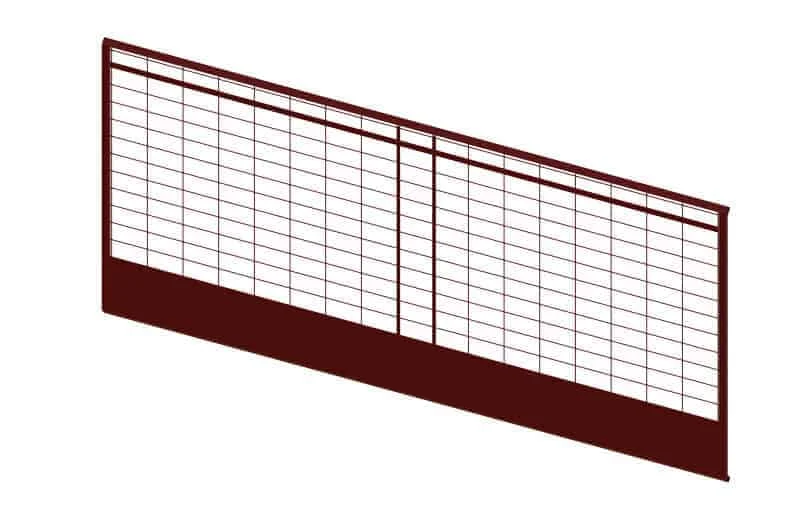

2.6m Safedge Mesh Barrier This barrier measures 1.2m high and 2.6m long. Galvanized mesh and frame ensure durability. Powder coating provides additional protection. |

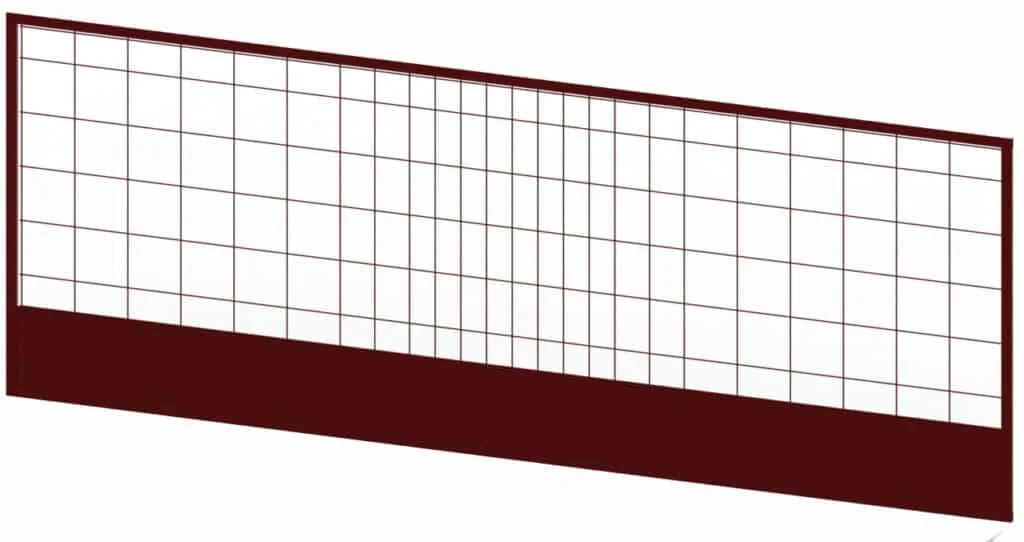

2.9m Safedge Mesh Barrier This version stands 1.1m high and 2.9m long. It uses 4mm wire thickness for strength. More lengths are available through customization. |
Why Choose Edge Protection Barrier With Compression Post?
Traditional edge protection requires drilling anchor holes into concrete slabs — a time-consuming process that damages structure surfaces. ABX Metal solves this with the edge protection barrier with compression post. Our factory-designed compression mechanism secures posts between floor slabs using friction force alone. A foot pedal activates the compression. An integrated level indicator confirms proper vertical alignment. The entire installation requires no tools, no drilling, and no permanent building modification.
The compression post adjusts from 2.4 m to 3.5 m, covering standard floor-to-floor heights in multi-story construction. Slider hook barrier clips position at any height along the post. Standard mesh panels in 2.6 m and 2.9 m lengths provide continuous edge protection. For wholesale buyers, we offer factory-direct pricing with OEM customization on panel sizes, mesh patterns, and powder coating colors.
Key Features of Edge Protection Barrier With Compression Post
No-Anchor Compression System — Friction between the floor slab and ceiling soffit secures each post. No drilling into concrete required. This preserves slab integrity and waterproof membranes. The system leaves zero surface damage after removal.

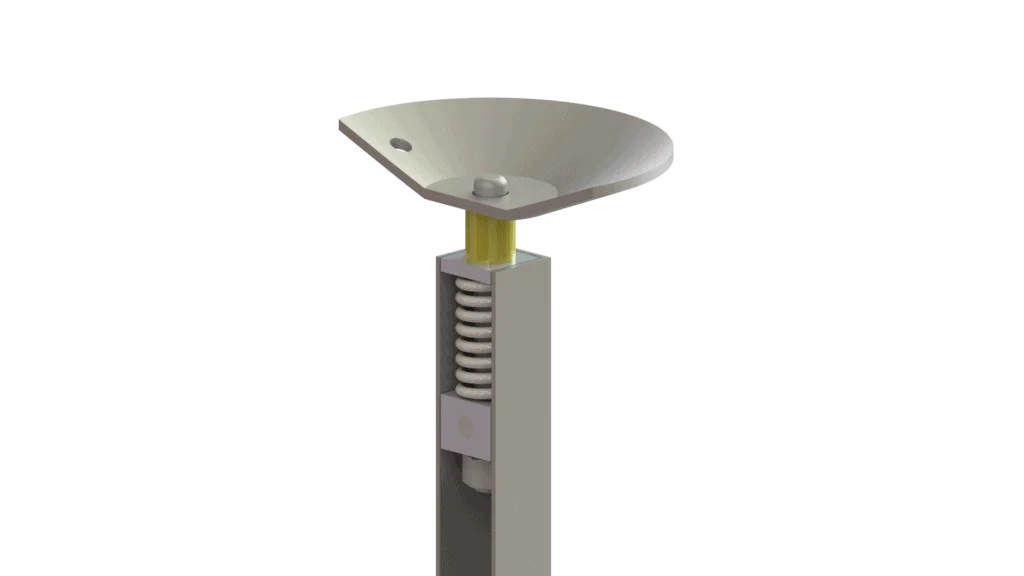

Foot Pedal Activation — Workers activate the compression mechanism with a simple foot pedal. No hand tools needed. The integrated pressurization device multiplies foot force into secure clamping between floor and ceiling surfaces.
Integrated Level Indicator — A built-in level indicator confirms correct vertical post alignment during installation. This eliminates guesswork and ensures each post applies compression force perpendicular to slab surfaces for maximum holding strength.

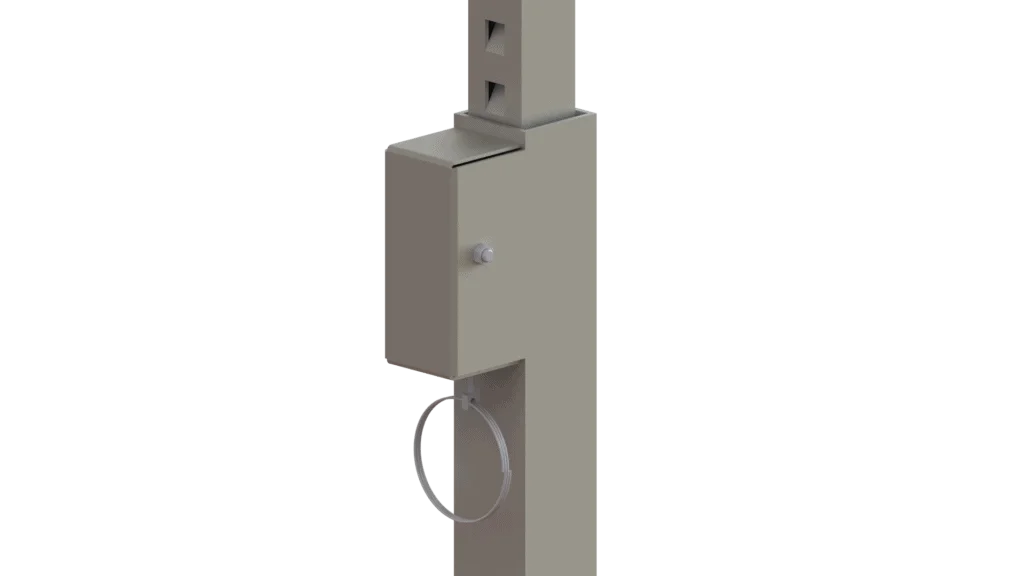

Adjustable Height Range — Posts extend from 2.4 m (8 ft) to 3.5 m (11 ft 6 in). The smart height adjustment handle simplifies post extension. Slide the handle to the desired position, extend the inner tube, then lock securely with the integrated pin mechanism.
Safedge Mesh Barrier Panels — Choose 1.2 m height × 2.6 m length or 1.1 m height × 2.9 m length panels. Both feature dense mesh with integrated toe boards for debris containment. Galvanized mesh with powder-coated frames provides dual-layer corrosion protection. Custom lengths and mesh densities available.
Slider Hook Barrier Clips — Barrier panels attach via slider hook clips that position anywhere along the compression post. This flexibility allows height adjustment of barrier panels independent of post position. Clips lock securely with simple hand operation.
Factory-Direct Manufacturing — ABX Metal produces compression posts, barrier clips, and mesh panels on integrated production lines. Our factory maintains consistent quality across large wholesale orders. OEM configurations with custom branding, colors, and packaging available.
Technical Specifications for Edge Protection Barrier With Compression Post
| Attribute | Specification |
|---|---|
| Post Height Range | 2.4 m (8 ft) – 3.5 m (11 ft 6 in) |
| Post Surface Treatment | Hot-dip galvanized |
| Barrier Panel (Type 1) | Height: 1.2 m, Length: 2.6 m |
| Barrier Panel (Type 2) | Height: 1.1 m, Length: 2.9 m, Wire: 4 mm |
| Mesh Size | 50×50 mm / 150×75 mm (custom densities available) |
| Panel Surface | Galvanized mesh + powder-coated frame |
| Barrier Clip Type | Slider hook (height-adjustable on post) |
| Activation Method | Foot pedal with integrated pressurization device |
| Alignment | Integrated level indicator for vertical alignment |
| Compliance Standards | EN 13374, COHS, OSHA, ANSI |
| Installation | No tools, no drilling, no anchoring required |
| Material | Powder-coated steel frame, galvanized mesh, 100% recyclable |
Edge Protection Barrier With Compression Post Applications
Multi-Story Concrete Frame Construction
Install compression posts between floor slabs without damaging concrete surfaces. The no-anchor system preserves slab edges and waterproofing. Workers set up edge protection barrier with compression post in minutes per bay. Relocate posts and panels as construction advances to upper floors.
Steel Frame Building Edge Protection
Deploy compression post systems in steel frame construction where floor-to-floor heights fall within the 2.4-3.5 m range. The system provides fall protection during steel decking, concrete pouring, and finishing operations.
Renovation and Fit-Out Projects
Use compression post barriers during interior renovation where drilling into finished slabs is prohibited. The system protects workers near open edges during demolition, MEP installation, and finishing. Remove posts leaving zero marks on completed surfaces.
Packing & Shipping
ABX Metal packs edge protection barrier with compression post components on steel pallets. Posts, barrier panels, slider hooks, and foot pedal assemblies ship in organized bundles with protective wrapping. Our export team manages global FCL and LCL logistics with full export documentation.
Quality Assurance
Our factory QC process includes compression force testing, post extension and locking verification, level indicator accuracy checks, and coating thickness measurement. EN 13374 compliance documentation accompanies wholesale orders. We provide installation video, PDF guides, and online engineering support with every purchase.
Frequently Asked Questions
How does the edge protection barrier with compression post stay in place without anchors?
The compression post uses friction force between the floor slab and ceiling soffit. The foot pedal activates an internal pressurization mechanism that expands the post against both surfaces. This creates secure clamping without any drilling, bolting, or chemical anchoring.
What floor-to-floor heights does the compression post accommodate?
Standard compression posts adjust from 2.4 m (8 ft) to 3.5 m (11 ft 6 in). This covers typical floor-to-floor heights in commercial, residential, and industrial construction. For heights outside this range, contact our engineering team about custom post configurations.
How quickly can workers install edge protection barrier with compression post?
Workers complete the four-step installation in under two minutes per post: extend post to ceiling, slide locking handle, insert locking pin, and activate foot pedal compression. No tools required. A typical bay installs in minutes compared to the hours needed for anchored systems.
Can the barrier panel height be adjusted independently of the post?
Yes, slider hook barrier clips position at any height along the compression post. This lets you set barrier panel height independently of floor-to-floor distance. The clips lock securely with hand operation and reposition easily as needed.
Does ABX Metal provide installation training for edge protection barrier with compression post?
Yes, we provide comprehensive installation video guides, PDF documentation, and online engineering support with every order. Our technical team offers live video consultations for project teams requiring additional installation guidance.
