Razor Wire Mesh Security Fence

Description

As a direct manufacturer, ABX Metal produces razor wire mesh that delivers maximum perimeter security for high-risk facilities. Our welded wire mesh panels combine with sharp razor blades to create a barrier that is almost impossible to climb or cut. We supply prisons, military bases, and critical infrastructure projects worldwide with certified quality and factory-direct pricing.

Key Features of Razor Wire Mesh

Anti-Climb Design — The razor blades extend outward from the mesh surface. Intruders cannot grab or step on the fence panel. Climbing attempts cause injury and immediate detection.

Anti-Cut Construction — High-tensile steel core wire resists bolt cutters and hand tools. The welded mesh structure distributes cutting force so the fence stays intact under attack.

Dual Mesh Patterns — Choose diamond mesh (75×150mm, 150×200mm, 150×300mm) or square mesh (50×50mm to 200×200mm) to match your security level and budget requirements.

Factory-Direct Quality — ABX Metal manufactures razor wire mesh in-house. You get wholesale pricing, consistent weld quality, and reliable lead times for every security project order.

Long Service Life — Hot-dip galvanized or PVC-coated finish protects against rust for 10-15 years. The zinc coating thickness meets or exceeds 40-60g/m² standard for outdoor security fencing.

Technical Specifications for Razor Wire Mesh

Attribute	Specification
Raw Material	Low carbon steel wire, 304/316 stainless steel razor strip （Customizable）
Surface Treatment	Hot-dip galvanized, PVC coated (green/black) （Customizable）
Blade Type	BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65
Fence Height	1000mm – 2500mm  （Customizable）
Panel Length	2m – 10m （Customizable）
Diamond Mesh Size	75×150mm, 150×200mm, 150×300mm （Customizable）
Square Mesh Size	50×50mm, 100×100mm, 150×150mm, 200×200mm （Customizable）
Blade Thickness	0.5mm (BTO), 0.6mm (CBT) （Customizable）
Core Wire Diameter	2.5mm ± 0.1mm （Customizable）

Razor Wire Mesh Blade Types

Razor wire mesh uses the same blade types as concertina razor wire. BTO blades (Blade Thickness 0.5mm) suit general security applications. CBT blades (Blade Thickness 0.6mm) provide heavier, more aggressive intimidation for maximum security sites. ABX Metal stocks all 8 blade types and can match any international standard specification.

The most popular blade types for razor wire mesh are BTO-22 and CBT-60. BTO-22 offers good cost-performance balance for commercial and industrial sites. CBT-60 provides maximum deterrence for prisons, military bases, and border security applications where intrusion risk is highest.

Standard Mesh Panel

Model	Blade style	Linear dia.	Thickness of blade	Blade length	Blade wide	Razor space
BTO-10		2.5±0.01mm	0.5±0.05mm	10±1mm	13±1mm	26±1mm
BTO-12		2.5±0.01mm	0.5±0.05mm	12±1mm	15±1mm	26±1mm
BTO-18		2.5±0.01mm	0.5±0.05mm	18±1mm	15±1mm	33±1mm
BTO-22		2.5±0.01mm	0.5±0.05mm	22±1mm	15±1mm	34±1mm
BTO-28		2.5±0.01mm	0.5±0.05mm	28±1mm	15±1mm	45±1mm
BTO-30		2.5±0.01mm	0.5±0.05mm	30±1mm	18±1mm	45±1mm
CBT-60		2.5±0.01mm	0.6±0.05mm	60±2mm	32±1mm	100±2mm
CBT-65		2.5±0.01mm	0.6±0.05mm	65±2mm	21±1mm	100±2mm

Applications of Razor Wire Mesh

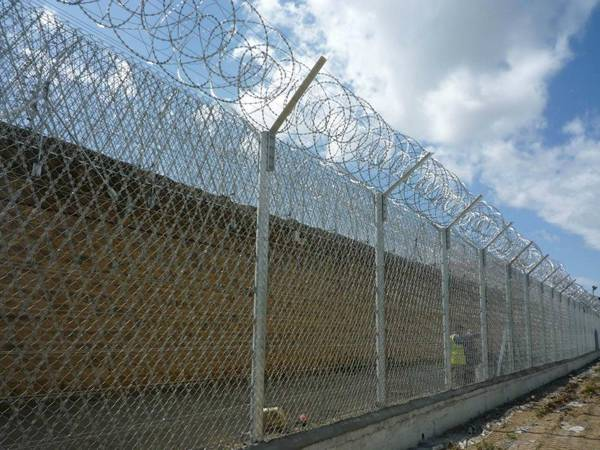

Prisons & Correctional Facilities — Razor wire mesh creates an escape-proof barrier around prison perimeters. The fence deters climbing and cutting attempts. Guard towers maintain clear sight lines through the mesh for effective surveillance monitoring.

Military & Defense Bases — Army, navy, and air force bases use razor wire mesh to secure perimeters, ammunition storage areas, and restricted access zones. The fence meets military security specification standards in most countries.

Critical Infrastructure Protection — Power plants, water treatment facilities, telecommunications hubs, and data centers install razor wire mesh to prevent unauthorized entry and sabotage. The fence protects national infrastructure assets.

Border & Coastal Security — Governments deploy razor wire mesh along borders, coastlines, and migration control zones. The fence creates a physical and psychological barrier that reduces illegal crossing attempts significantly.

Airports & Seaports — Restricted areas within airports and container ports require high-security fencing. Razor wire mesh meets aviation and maritime security regulations while maintaining visibility for CCTV camera coverage.

Why Choose ABX Metal Razor Wire Mesh?

Razor wire mesh provides higher security than chain link or welded wire fence alone. The integrated razor blades create a psychological and physical deterrent that stops intruders before they attempt entry. ABX Metal manufactures each panel in our own factory using galvanized high-tension steel wire and razor strips. You get consistent blade sharpness and weld quality that meets international security standards.

We serve security contractors, government procurement officers, and infrastructure developers globally. Our factory holds ISO-certified production standards. Every panel passes sharpness testing and weld shear testing before shipment. We support OEM orders, custom heights, and bulk purchases for large-scale security projects.

Quality Assurance

ABX Metal tests every production batch for blade sharpness, weld shear strength, and zinc coating thickness. Our QC laboratory uses digital force gauges and coating thickness meters. We provide mill test reports and conformity certificates with each shipment. Production conforms to ISO 9001 quality management standards and ASTM security fencing specifications.

Our factory quality team inspects 100% of finished panels before packaging. Each panel carries a production batch number for full traceability. We have exported razor wire mesh fence to 25+ countries with clean customs clearance records. Our documentation team prepares all certificates needed for your project compliance approval process.

Packing & Shipping

ABX Metal packs razor wire mesh panels in bundles wrapped with waterproof paper and steel strapping. We load containers carefully to prevent panel damage during ocean transport. For project orders, we provide detailed packing lists with panel counts, dimensions, and batch numbers. Typical production lead time is 20-30 days after order confirmation and drawing approval.

Frequently Asked Questions

What is the minimum order quantity for razor wire mesh?

ABX Metal accepts orders starting from 10 panels for sampling and trial runs. Standard MOQ for project orders is 100 panels. For wholesale distributors and government tenders, we offer volume pricing tiers based on annual purchase volume. Contact our sales team with your project drawings and quantity requirements for a detailed quotation.

Can you customize the panel height and width?

Yes, ABX Metal customizes razor wire mesh panel dimensions to your project specification. We produce panel heights from 1000mm to 2500mm and lengths from 2m to 10m. Send us your layout drawing and we engineer the panel sizes to fit. Typical lead time for custom panels is 25-35 days including production and quality inspection.

Which blade type should I choose for a prison project?

For prison perimeters, we recommend CBT-60 or CBT-65 blade type razor wire mesh. These heavy blades provide maximum psychological deterrence and physical resistance to cutting tools. BTO-28 and BTO-30 are alternatives with slightly lower cost. Our technical team helps you select the right specification to meet your security design requirements and budget constraints.

Do you provide installation design and hardware?

Yes, ABX Metal provides complete system design including post spacing, foundation requirements, and hardware lists. We supply matching steel posts, concrete foundations (if needed), bolts, and all installation accessories. Our engineering team reviews your site conditions and produces installation drawings. We also provide video installation guidance for your contractors.

What certifications do you provide for government tenders?

ABX Metal provides ISO 9001 certificate, mill test reports, coating thickness certificates, conformance certificates to ASTM/EN standards, and factory audit reports. We also provide third-party inspection options (SGS, BV, Intertek) at buyer cost. Our documentation team has 10+ years experience preparing tender compliance packages for government infrastructure projects worldwide.
