Description

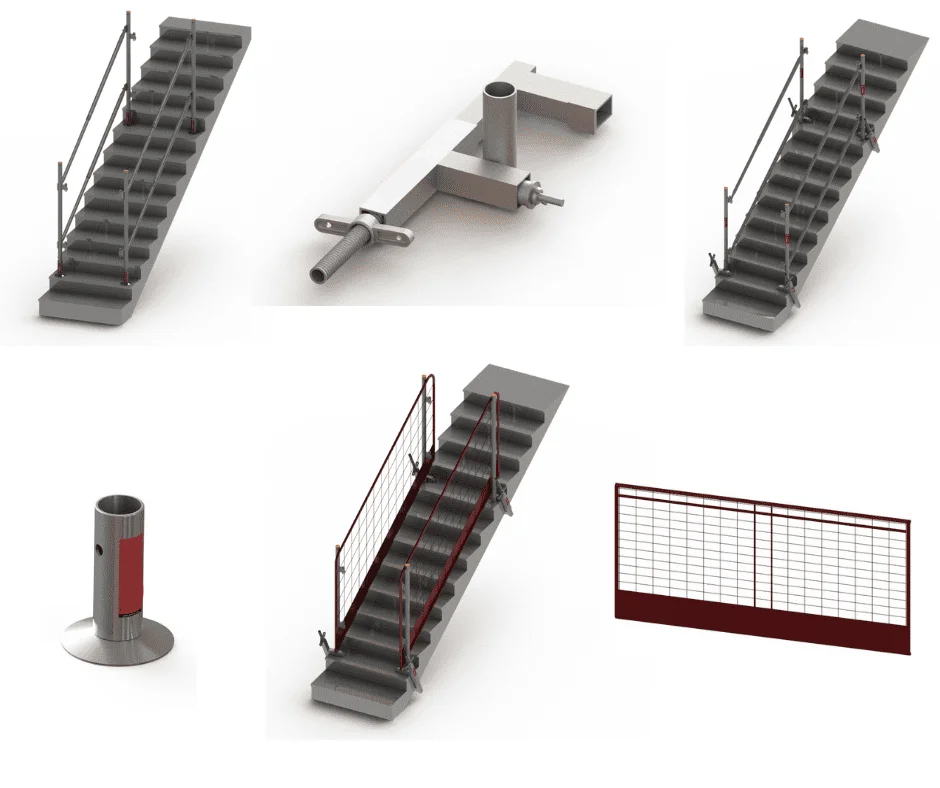

ABX Metal, a direct manufacturer, produces stair edge protection barrier systems for fall prevention on exposed stair edges during construction. Our factory fabricates three installation configurations: clamp-on stairs, socket base on stairs, and full mesh barrier on stairs. All systems comply with BS EN 13374 and The Work at Height Regulations 2005 requirements for temporary edge protection.
Stair Edge Protection Barrier System Solutions
Traditional temporary edge protection barrier was complex. It often proved expensive for stair edges. Staircases vary in design significantly. Stair landings differ in configuration. Returns present unique challenges. These situations required many cut pipes. Special spikes were often necessary. Custom-built protection increased costs substantially.
ABX mesh barrier systems solve these problems. They provide systematic stair protection solutions. You can use them independently or integrate them. They work with stencil guardrail systems seamlessly.

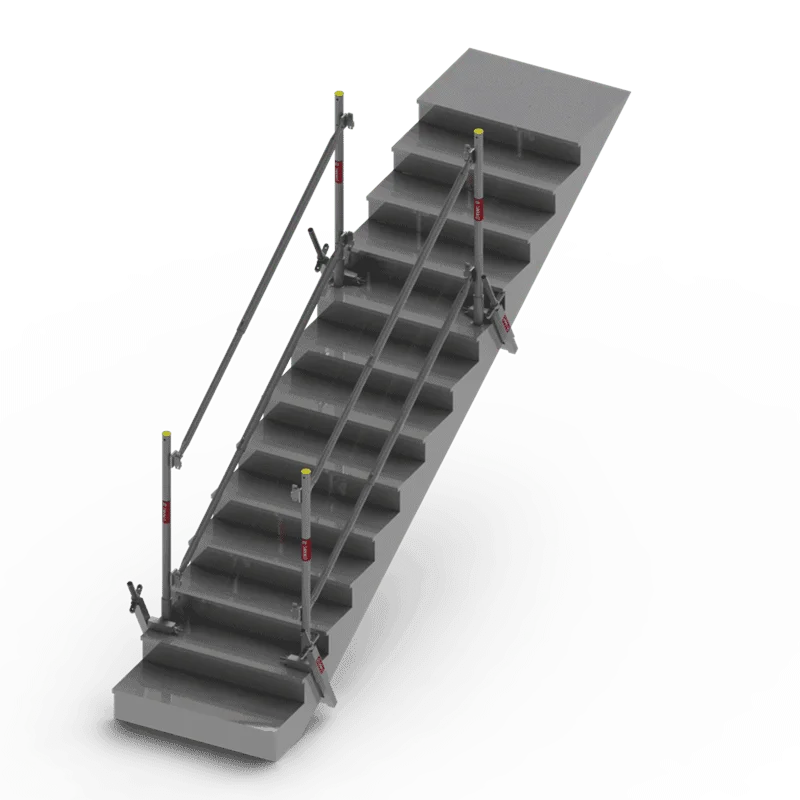

CLAMP ON STAIRS: We developed specific clamping devices for stairs. The ABX clamp ensures secure attachment. A mounted socket base completes the system. This provides safe access and egress. It serves construction project staircases effectively.

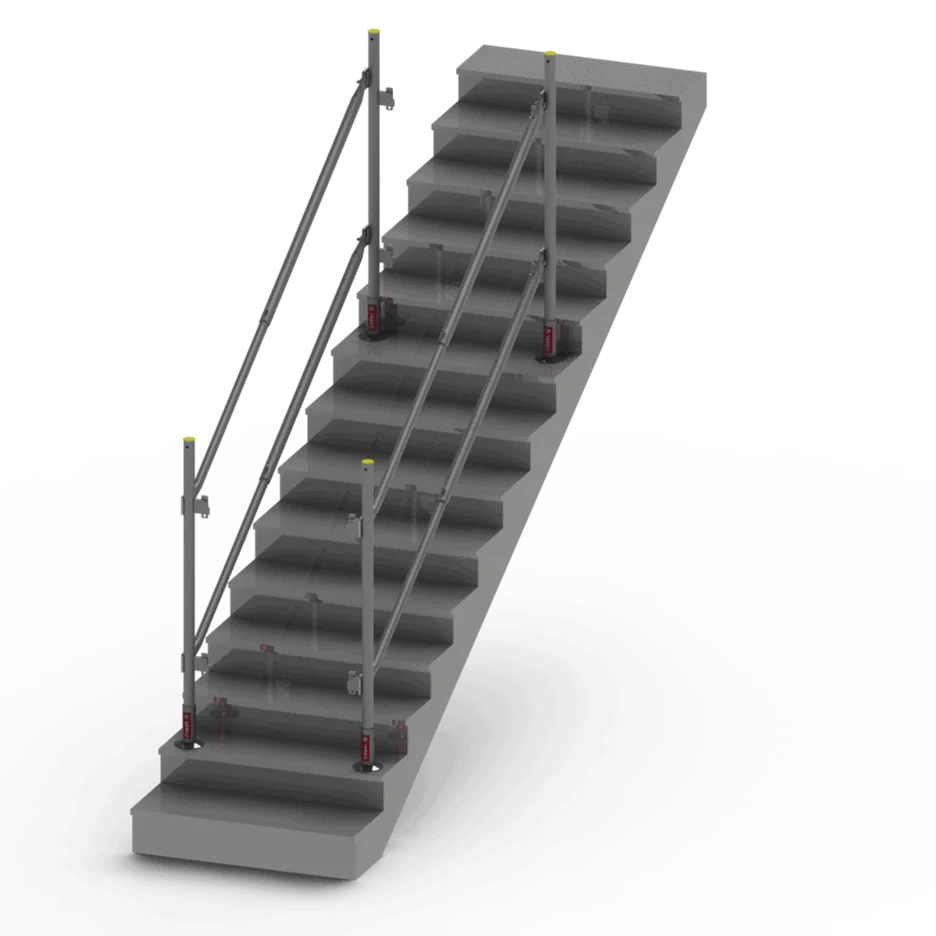

SOCKET BASE ON THE STAIRS: Stairs function as common walking surfaces. Construction sites use them extensively. The ABX socket base system protects workers. It ensures safety during stair use.

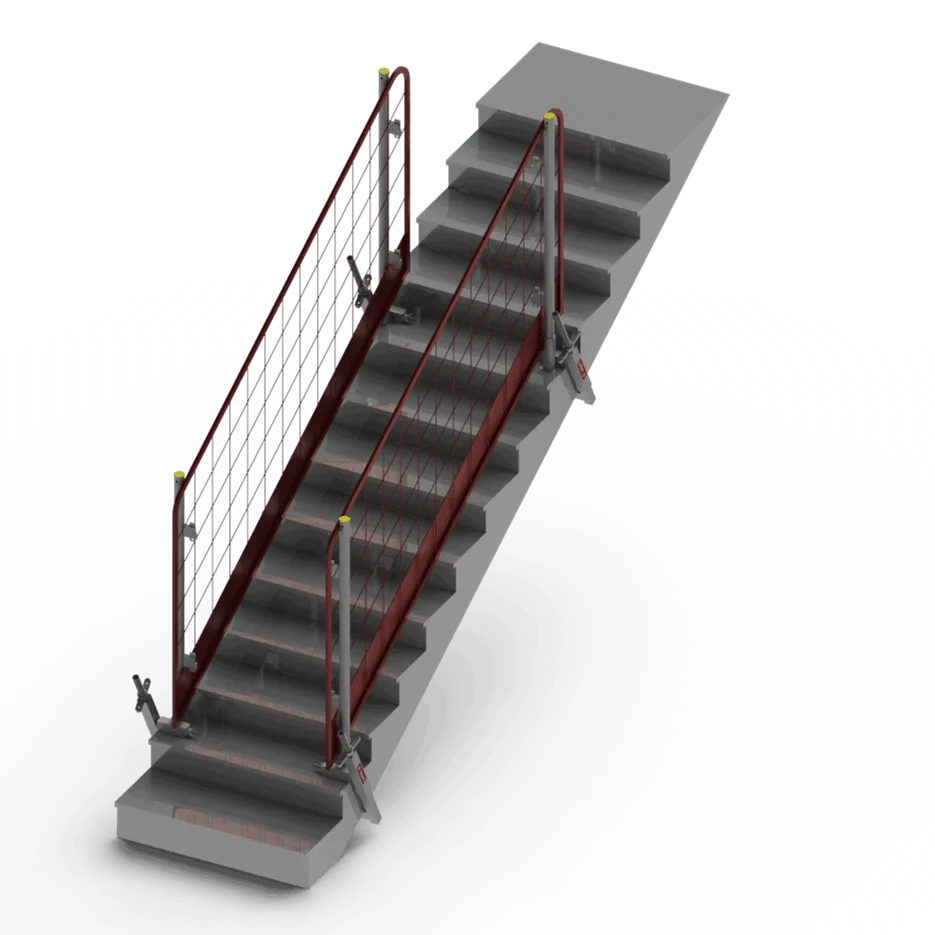

MESH BARRIER ON THE STAIRS: Our stair barrier system offers full versatility. It maintains safety in hazardous environments. No compromise occurs on protection standards.
Why Choose Stair Edge Protection Barrier?
Open stair edges present continuous fall hazards throughout building construction. Traditional methods require cutting timber posts and fabricating custom brackets for each stair flight. ABX Metal replaces this labor-intensive approach with a modular stair edge protection barrier system. Our factory produces adjustable posts, clamp mechanisms, and mesh panels that adapt to any stair geometry.
Three installation configurations cover every stair condition on site. Clamp-on fixtures grip stair treads without drilling. Socket bases embed during concrete pouring for later post insertion. Full mesh barrier systems provide continuous protection along complete stair flights. All systems install in half the time of traditional timber barrier construction. This reduces labor cost and gets workers safely onto stairs faster.
Key Features of Stair Edge Protection Barrier
Three Installation Configurations — Clamp-on system attaches to finished stair treads without drilling. Socket base system embeds during concrete work for later post insertion. Mesh barrier system provides continuous protection along complete stair flights and landings.
Adjustable Geometry — Posts and clamp mechanisms adjust to match stair pitch, tread depth, and riser height. A single system kit covers multiple stair configurations on one project. This eliminates custom fabrication for each stair flight.
Smooth Top Frame — The mesh barrier top frame features a smooth, continuous profile that functions as a handrail. Workers can grip the top frame safely while ascending or descending. The robust frame withstands repeated handrail use throughout construction.
Tool-Free Installation — Clamp mechanisms secure with hand-operated fasteners. No drilling, no welding, no specialized tools required. Workers complete stair edge protection in minutes per flight rather than hours.
Long Service Life — Galvanized and powder-coated finishes resist corrosion through multiple project cycles. Panels and posts reuse across consecutive projects for excellent return on investment. Low maintenance requirements reduce lifetime ownership cost.
Factory-Direct Wholesale Supply — ABX Metal manufactures stair edge protection barrier kits in our own factory. Standard configurations ship from stock. Custom stair geometries receive dedicated production scheduling. OEM packaging and branding available.
Technical Specifications for Stair Edge Protection Barrier
| Attribute | Specification |
|---|---|
| Panel Height | 1100 mm / 1300 mm |
| Panel Length | Customizable to stair flight geometry |
| Wire Diameter | 5 mm / 6 mm / 8 mm |
| Mesh Size | 50×50 mm / 75×75 mm / 50×100 mm / 50×150 mm |
| Post × Wall | 48×1.5 mm / 48×2.0 mm |
| Installation Methods | Clamp-on / Socket base / Mesh barrier system |
| Surface Treatment | Hot-dip galvanized + powder coating |
| Top Frame | Smooth continuous profile suitable as handrail |
| Compliance | BS EN 13374, Work at Height Regulations 2005 |
| Material | Low-carbon steel, 100% recyclable |
Stair Edge Protection Barrier Applications
Concrete Staircase Construction
Install socket bases during stair formwork preparation. Insert posts and barrier panels after formwork stripping. This sequential workflow keeps stair edges protected as soon as they become accessible. Mesh panels follow stair pitch for continuous protection.
Precast Stair Installation
Clamp barrier systems onto precast stair units immediately after placement. The non-drilling attachment preserves precast finish quality. Barriers remain in place through finishing trades until permanent handrails install.
Renovation and Retrofit Projects
Use clamp-on systems for existing stair protection during renovation work. These require no structural modification to the staircase. Remove barriers cleanly when renovation work completes.
Packing & Shipping
ABX Metal packs stair edge protection barrier components on steel pallets. Posts, clamps, socket bases, and mesh panels ship in clearly labeled bundles. Our export team provides container loading plans optimized for your order configuration. FCL and LCL shipping to ports worldwide.
Quality Assurance
Our factory conducts fitment testing on standard stair geometries, weld integrity checks, and coating thickness measurement. BS EN 13374 compliance documentation accompanies wholesale orders. Material traceability records available for project specifications.
How does stair edge protection barrier adapt to different stair pitches?
Adjustable posts and clamp mechanisms accommodate common stair pitches from 30 to 45 degrees. Provide your stair geometry during inquiry. Our technical team confirms compatibility or designs custom adapters for non-standard stairs.
Can the top frame serve as a working handrail during construction?
Yes, the smooth continuous top frame profile functions as a handrail for workers. It withstands repeated gripping and leaning loads throughout the construction period. This dual-function design eliminates the need for separate temporary handrails.
How much faster is installation compared to traditional timber barriers?
ABX Metal stair edge protection barrier installs in approximately half the time of traditional cut-and-fix timber barriers. The modular, adjustable system eliminates measuring, cutting, and custom bracket fabrication for each stair flight.
Do you provide stair edge protection barrier for non-standard stair geometries?
Yes, as a manufacturer we fabricate custom configurations for curved stairs, spiral stairs, and irregular tread patterns. Provide your stair drawings for a custom solution quotation. OEM and ODM orders welcome.
