Description
ABX Metal’s 3D wire fence delivers enhanced perimeter security through V-bend reinforcement that adds panel rigidity and visual deterrence. As a direct manufacturer, ABX Metal provides factory-direct pricing with ISO-certified quality control. Available in galvanized and PVC-coated finishes for commercial, industrial, and infrastructure applications.
Why Choose 3D Wire Fence?

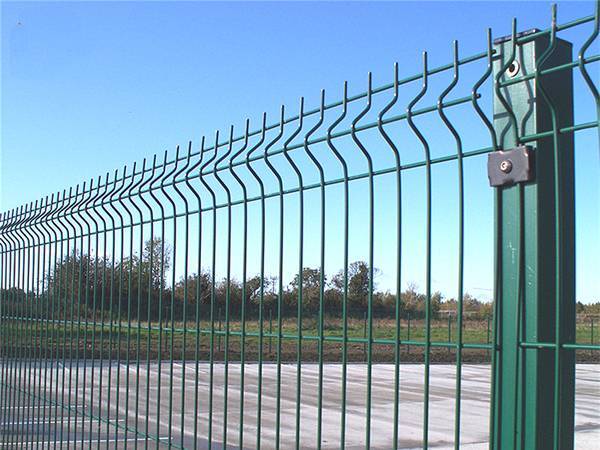

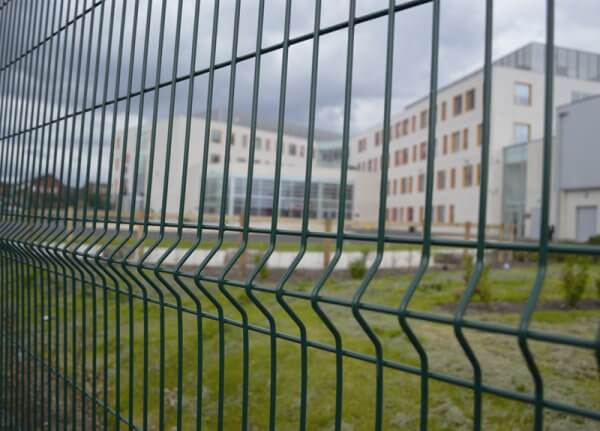

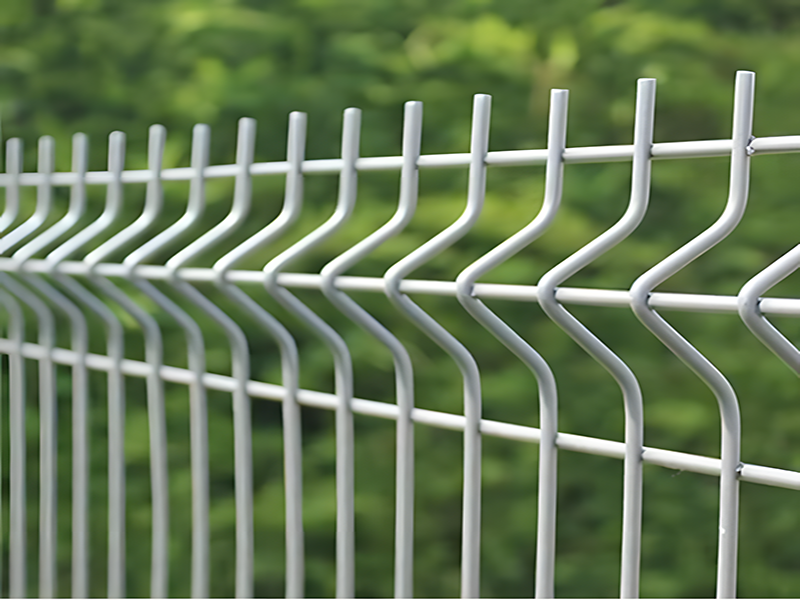

3D wire fence features V-shaped bends along the horizontal wires. These bends add panel rigidity and create a 3D visual effect. You get better security than standard welded mesh at a lower cost than double wire fence. Our factory produces these panels with precision V-bend forming equipment.
Contractors choose 3D fence for schools, residential communities, and commercial sites. The V-bend design looks modern and attractive. You can see through the mesh, which helps with landscape views. The fence deters climbing due to the bent wire geometry. It is a popular choice for public and private sector projects.
Key Features of 3D Wire Fence
- V-Bend Reinforcement — Horizontal V-shaped bends increase panel rigidity and create a 3D visual effect that enhances aesthetic appeal
- Cost-Effective Security — Lower cost than double wire fence while delivering better rigidity than standard welded mesh panels
- Anti-Climb Design — 50×200mm or 55×200mm mesh openings resist finger and toe holds for basic climbing deterrence
- Factory-direct pricing — As the manufacturer, ABX Metal offers wholesale pricing with no middleman markup for bulk and project orders
- Multiple Surface Options — Hot-dip galvanized, galvanized plus PVC coated, or pre-galvanized plus PVC coated to suit your budget
- Standard Panel Size — 2500mm width, heights from 830mm to 2430mm to match most project requirements
- Compatible Post System — Square or rectangular posts with bolt-on brackets; no on-site welding needed for standard installation
3D Wire Fence Materials & Construction
We manufacture 3D wire fence panels from high-quality low-carbon steel wire. The wire first goes through a V-bend forming machine. The machine creates precise, uniform bends along the horizontal wires. After bending, the wires go to the welding line. Our automated welders create strong joints at every intersection point.
The standard wire diameter is 4mm horizontal and 4mm vertical. Heavy-duty versions use 5mm wire for extra strength. Mesh opening is typically 50×200mm or 55×200mm. The V-bends are spaced at approximately 300-400mm intervals. This spacing creates the 3D effect and adds panel stiffness effectively.
Wire Diameter and Mesh Options
The 4mm × 4mm specification suits most standard applications. It balances cost and performance well. The 5mm × 5mm specification delivers higher security. It resists impact better and lasts longer in harsh environments. Both specifications work with the same post and bracket system for easy installation.
Technical Specifications
| Attribute | Specification |
|---|---|
| Panel Width | 2500mm / 3000mm |
| Panel Height | 830mm – 2430mm |
| Wire Diameter | 4mm × 4mm / 5mm × 5mm |
| Mesh Opening | 50×200mm / 55×200mm |
| V-Bend Quantity | 3-4 bends per panel (depending on height) |
| Surface Finish | HDG (80-120g/m²) or HDG + PVC (0.8-1.0mm) |
| Post Type | Square 60×60mm, wall thickness 2mm |
| Certification | ISO 9001, SGS, Mill Test Certificate |
| MOQ | 100 panels / 5 tons |
| Lead Time | 15-20 working days |
3D Wire Fence Surface Treatment & Finish
We offer multiple surface treatment options for 3D wire fence panels. Hot-dip galvanizing provides a zinc barrier that lasts 10-15 years. Galvanized plus PVC coating adds a second layer. The PVC comes in green (RAL 6005), black (RAL 9005), and other colors. Pre-galvanized plus PVC is a more economical option.
Green is the most popular color for 3D fence in Europe and the Middle East. Black looks modern and suits high-end residential projects. We use outdoor-grade PVC powder. The coating resists UV damage and stays flexible in cold weather. Your fence keeps its appearance for over 10 years outdoors.
Coating Standards and Quality
Our galvanizing meets ASTM A123 and ISO 1461 standards. Zinc coating weight is 80-120g/m² minimum. PVC coating thickness is 0.8-1.0mm after curing. We test coating adhesion with cross-cut tests. Every production batch gets a QC report. We share the report with you before shipping the order.
Applications of 3D Wire Fence

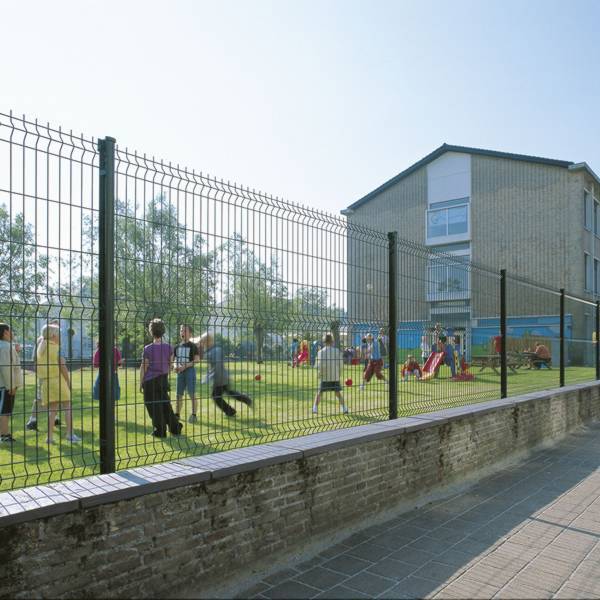

3D wire fence secures schools, parks, residential areas, and commercial sites. The V-bend design looks attractive in community settings. You get good security without a harsh, industrial appearance. The panels resist impact from sports balls and everyday activity. Maintenance is minimal over the product life.
Residential & Community Projects
Residential communities and parks choose 3D fence for its clean look. The green color blends with landscaping. The V-bend pattern adds visual interest. You can install it along walking paths and playground boundaries. The mesh is safe for children — no sharp edges after proper installation with caped posts.
Commercial & Institutional Sites
Office buildings and institutional campuses use 3D fence for perimeter definition. The fence looks professional and welcoming. You can add company branding with color-matched posts. Our wholesale pricing helps you complete large projects within budget. Contact our team for a volume quotation today.
Packing & Shipping
We pack 3D wire fence panels for safe export transport. Panels are palletized and wrapped in plastic film. Brackets, bolts, and caps are boxed separately. We load containers carefully to maximize space. A 40ft container holds approximately 500-700 panels depending on panel height and packing method.
We ship to ports worldwide through reliable freight forwarders. Our logistics team handles export documents including commercial invoice, packing list, and certificate of origin. You get door-to-door service through our agent network in most countries. Ocean transit takes 20-40 days depending on destination.
Frequently Asked Questions
What is the difference between 3D fence and standard welded mesh fence?
3D fence has V-shaped bends along the horizontal wires. These bends add panel rigidity and create a 3D visual effect. Standard welded mesh is flat and less rigid. 3D fence also looks more attractive for public-facing sites. Choose 3D fence when you need better rigidity and nicer appearance than flat mesh panels provide.
Can you provide custom panel heights and colors?
Yes, as a direct manufacturer, ABX Metal produces custom panel heights. We can adjust height from 630mm up to 3000mm. Custom colors are available with a minimum order quantity. Our factory supports OEM and ODM orders with full technical documentation. Send us your requirements for a fast quotation response.
What is the minimum order quantity and delivery time?
Our standard MOQ is 100 panels or 5 tons. For wholesale and project orders, we offer volume-based pricing tiers. Lead time is 15-20 working days for standard products. Custom products take 20-30 working days. We can expedite production for urgent project timelines. Contact us to check current production capacity.
How do I install 3D wire fence panels?
Installation is straightforward with our bolt-on bracket system. Set the posts in concrete at 2500mm centers. Bolt the panels to the posts using stainless steel brackets. The panels overlap by one mesh opening at each post. We provide installation drawings and video guidance. You can also hire local contractors familiar with mesh fencing installation.
Do you provide samples before bulk order?
Yes, we provide panel samples and accessory samples. Sample cost is usually deducted from your first bulk order. Shipping samples takes 5-7 days by express courier. As an experienced exporter, we handle sample shipments to over 50 countries. Contact our sales team to request a sample kit today.
