ABX Metal, a direct manufacturer, produces edge protection fence systems for construction site fall prevention. Our factory fabricates welded wire mesh barrier panels compliant with EN 13374, OSHA 1926, and AS/NZS 4994 standards. These temporary edge protection systems prevent worker falls and falling object hazards on roofs, slabs, stairwells, and formwork edges across commercial, industrial, and infrastructure projects.
Why Choose Edge Protection Fence For Construction Site?
Falls from height remain the leading cause of construction fatalities worldwide. ABX Metal addresses this risk with engineered edge protection fence systems manufactured in our factory. Our welded wire mesh panels feature a 90-degree bent top edge that enhances impact resistance. An integrated toe board prevents tools and debris from falling to lower levels.
As a direct manufacturer, we control every production stage from raw material sourcing to final QC inspection. This integrated approach delivers consistent quality across large orders. For wholesale and project buyers, factory-direct pricing eliminates distributor margins while maintaining full compliance documentation.
Key Features of Edge Protection Fence For Construction Site
EN 13374 Certified Design — Our edge protection fence meets EN 13374 Class A, B, and C requirements. Class A resists static loads on flat surfaces. Class B handles low dynamic forces on slopes up to 30 degrees. Class C provides high dynamic resistance on slopes up to 60 degrees. This triple-class compliance covers virtually all construction edge scenarios.
Welded Wire Mesh Panels — Low-carbon steel wires weld together into rigid grid panels. Wire diameters range from 5 mm to 8 mm for heavy-duty impact resistance. Mesh openings from 50×50 mm to 50×200 mm balance visibility with containment. The smooth welded surface has no sharp edges for safe handling.
Integrated Toe Board — Each panel includes a built-in toe board along the bottom edge. This prevents tools, fasteners, and debris from falling to lower work areas. The toe board runs the full panel length for complete object containment.
Dual Surface Protection — Hot-dip galvanizing provides the base corrosion barrier. Powder coating adds a second protective layer and color options. Choose from yellow, red, orange, and blue for high-visibility safety marking. RAL custom colors support project branding requirements.
Freestanding Counterweight Option — For completed roof surfaces, our freestanding system requires no drilling. Counterweight blocks hold posts in position without penetrating waterproof membranes. This preserves roof integrity while meeting fall protection requirements.
Factory-Direct Manufacturing — ABX Metal produces edge protection fence panels on automated welding lines. Our QC team inspects every batch for dimensional accuracy, weld strength, and coating thickness. OEM orders accepted with custom panel sizes, mesh patterns, and packaging.
Technical Specifications for Edge Protection Fence For Construction Site
| Attribute | Specification |
|---|---|
| Panel Size | 1100×1700 mm / 1100×2400 mm / 1300×1300 mm / 1300×2200 mm |
| Wire Diameter | 5 mm / 6 mm / 8 mm |
| Mesh Hole Size | 50×50 mm / 75×75 mm / 50×100 mm / 50×150 mm / 50×200 mm |
| Post Diameter | 48 mm |
| Post Wall Thickness | 1.5 mm / 2.0 mm |
| Toe Board | Integrated, full panel length |
| Top Edge Design | 90-degree bent edge for enhanced impact resistance |
| Surface Treatment | Hot-dip galvanized + powder coating |
| Color Options | Silver, yellow, red, blue, white, RAL custom colors |
| Standards | EN 13374 (Class A/B/C), OSHA 1926, AS/NZS 4994 |
| Material | Low-carbon steel welded wire mesh, 100% recyclable |
| Packaging | Steel pallets, custom packaging available |
Edge Protection Fence For Construction Site Applications

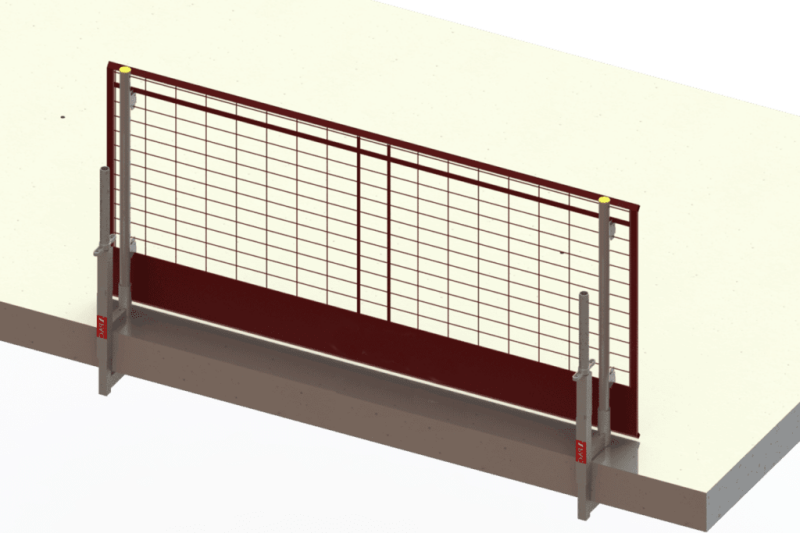

Concrete Slab Edge Protection
Install barrier panels along exposed slab edges during multi-story construction. Bolt-down sockets or slab grab clamps secure posts without damaging concrete. These systems protect workers during formwork stripping, steel fixing, and concrete pouring operations.

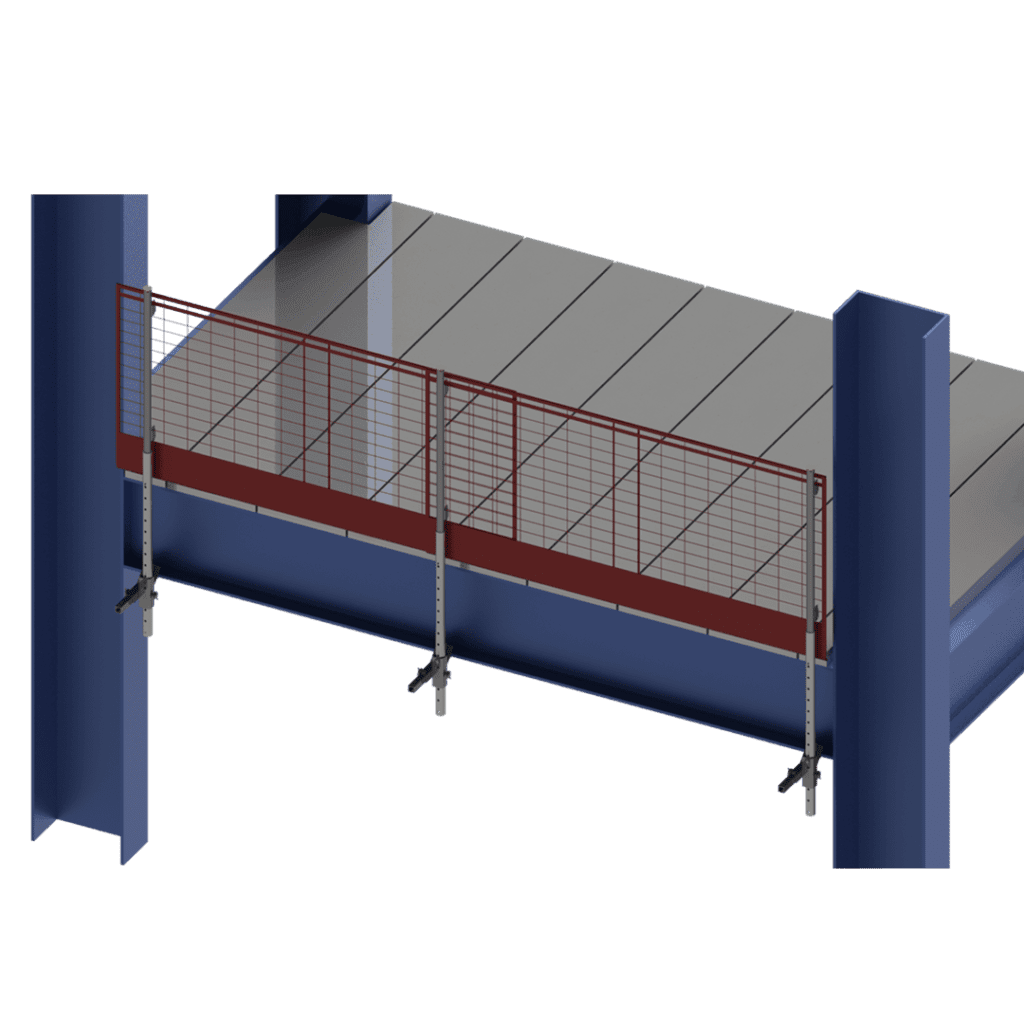

Steel Structure Edge Protection
Clamp barrier posts directly onto steel I-beams and structural members. Pre-install brackets at ground level before lifting steel assemblies into position. This approach eliminates高空作业 for edge protection installation.
Stairwell Edge Protection
Protect open stair edges during construction with adjustable barrier configurations. Socket bases or clamp-on posts adapt to stair geometry. Mesh panels provide continuous protection along stair flights and landings.
Roof Edge Protection
Use freestanding counterweight systems for completed roof surfaces. These require no penetration of waterproof membranes. Yellow powder-coated panels provide high visibility for rooftop maintenance crews.
Packing & Shipping
ABX Metal packs edge protection fence panels on heavy-duty steel pallets. Panels stack with protective interleaving to prevent coating damage. Posts and fittings ship in separate cartons within the same container. Our export team manages global FCL and LCL shipments. We provide container loading plans optimized for your panel dimensions and order volume.
Quality Assurance
Our factory QC process includes dimensional verification, weld strength testing, and coating thickness measurement on every production batch. EN 13374 compliance documentation accompanies wholesale orders. We provide material certificates and traceability records for project-scale purchases. Third-party inspection services available upon request.
What is the difference between EN 13374 Class A, B, and C edge protection fence?
Class A suits flat surfaces and slopes up to 10 degrees, resisting static loads from leaning workers; Class B covers slopes up to 30 degrees, withstanding low dynamic forces from slipping; Class C handles slopes up to 60 degrees, providing high dynamic resistance against sliding falls. ABX Metal manufactures panels compliant with all three classes.
How often should edge protection fence be inspected on site?
Inspect immediately after installation by a competent person. Conduct routine inspections every 7 days. Perform additional checks after severe weather, high winds, or accidental impact. Document all inspections as required by OSHA and HSE regulations.
Can edge protection fence be installed without drilling into concrete?
Yes, our freestanding counterweight system requires no drilling or anchoring. It preserves waterproof membranes on completed roof surfaces. For slab edges, clamp-on systems also avoid drilling. Contact our technical team for the best mounting solution for your site conditions.
Do you offer edge protection fence in custom panel sizes?
Absolutely. As a direct manufacturer, ABX Metal fabricates panels to custom dimensions, mesh patterns, and colors. Provide your project specifications. Our engineering team confirms feasibility and lead time. OEM and ODM orders welcome for project-specific requirements.
What is the minimum order quantity for edge protection fence wholesale?
Standard MOQ varies by panel configuration. Contact our export team with your required specifications for current MOQ and wholesale pricing. We accommodate trial orders for first-time buyers evaluating product quality.
