Fixed Knot Mesh Fence

Description

As a direct manufacturer, ABX Metal produces fixed knot mesh fence that withstands heavy livestock pressure and harsh outdoor conditions. Our fence keeps cattle, deer, and other animals safely contained while adapting to rolling terrain. We export worldwide with certified quality and competitive factory pricing for distributors and contractors.

Why Choose ABX Metal Fixed Knot Mesh Fence?

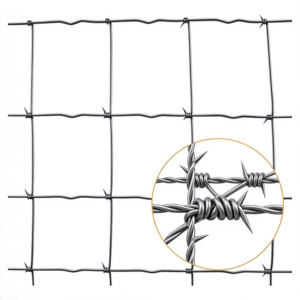

Fixed knot mesh fence outperforms barbed wire and woven field fence for livestock containment. The knot design locks vertical and horizontal wires together so the fence stays tight under animal pressure. ABX Metal manufactures each roll in our own factory using hot-dip galvanized Q235 steel wire. You get consistent knot strength and corrosion resistance that lasts 10-15 years outdoors.

We serve farm owners, ranchers, contractors, and agricultural equipment distributors globally. Our factory holds ISO-certified production standards. Every roll passes tensile strength testing before shipment. We support OEM orders, custom heights, and bulk purchases for large ranch or government projects.

Key Features of Fixed Knot Mesh Fence

Strong Knot Design — Cross lock and square deal knots resist slipping under heavy animal impact. The fence stays tight and secure even when livestock press against it.

Terrain Adaptability — The flexible mesh conforms to hills, valleys, and uneven ground without special panels. You save time and labor during installation.

Hot-Dip Galvanized — Q235 steel wire with zinc coating resists rust in rain, snow, and humid climates. Expected service life reaches 10-15 years outdoors.

Multiple Knot Types — Choose monarch knot (flexible), square deal knot (rigid), or cross lock knot (premium, extreme strength) to match your livestock type and budget.

Factory-Direct Supply — ABX Metal manufactures fixed knot fence in-house. You get wholesale pricing, consistent quality, and reliable lead times for every order.

Technical Specifications for Fixed Knot Mesh Fence

Model	Horizontal Wires	Height (cm)	Roll Length	Vertical Wire Spacing
8-90	8	90	50m / 100m	15/20/30 cm
10-107	10	107	50m / 100m	15/20/30 cm
8-115	8	115	50m / 100m	15/20/30 cm
10-120	10	120	50m / 100m	15/20/30 cm
11-142	11	142	50m / 100m	15/20/30 cm
11-150	11	150	50m / 100m	15/20/30 cm
12-165	12	165	50m / 100m	15/20/30 cm
13-175	13	175	50m / 100m	15/20/30 cm
14-200	14	200	50m / 100m	15/20/30 cm
Material	Hot-dip galvanized Q235 steel wire
Horizontal Wire Tensile	80-90 kg/mm²
Vertical Wire Tensile	40-50 kg/mm²

Fixed Knot Mesh Fence Knot Types

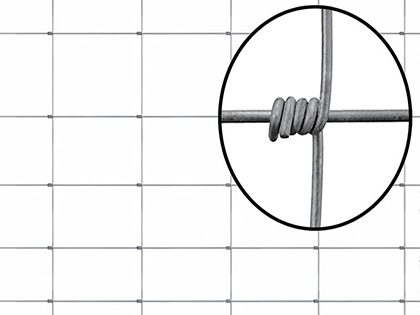

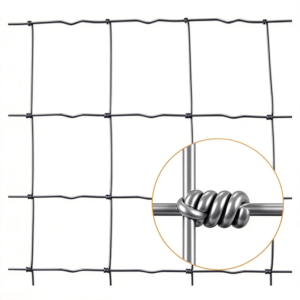

Monarch Knot — The vertical wire wraps around the horizontal wire at each crossover. This knot allows controlled movement so the fence flexes under pressure and springs back. Monarch knot fence works best on uneven terrain where the fence must move with ground movement.

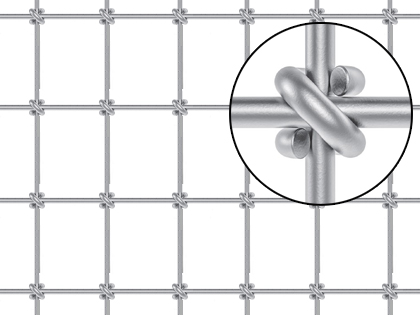

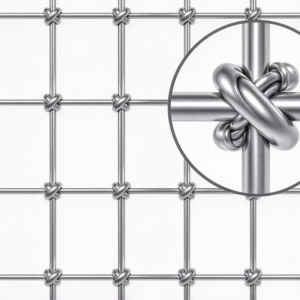

Square Deal Knot — All wires lock tightly together at each knot point. The fence stays rigid and maintains its shape under tension. Square deal knot fence suits flat terrain and situations where a taut, permanent appearance matters.

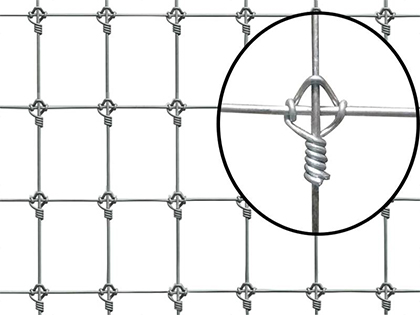

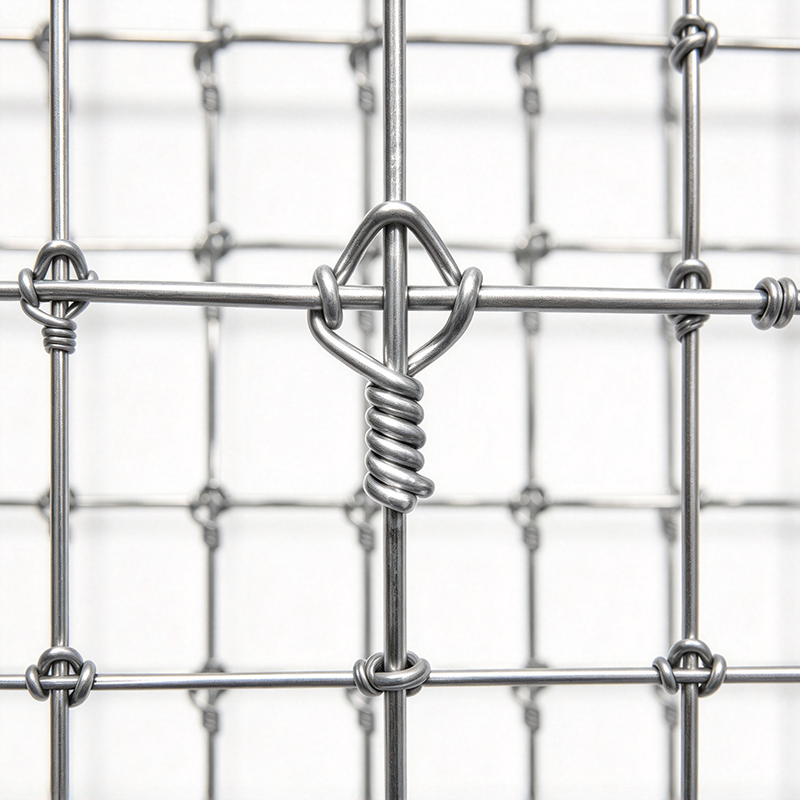

Cross Lock Knot (Premium) — An independent wire wraps tightly around both the line wire and stay wire. This creates the strongest knot that will not slip even under extreme pressure from heavy livestock or snow loads. Cross lock fence costs more but lasts longest in harsh conditions.

Applications of Fixed Knot Mesh Fence

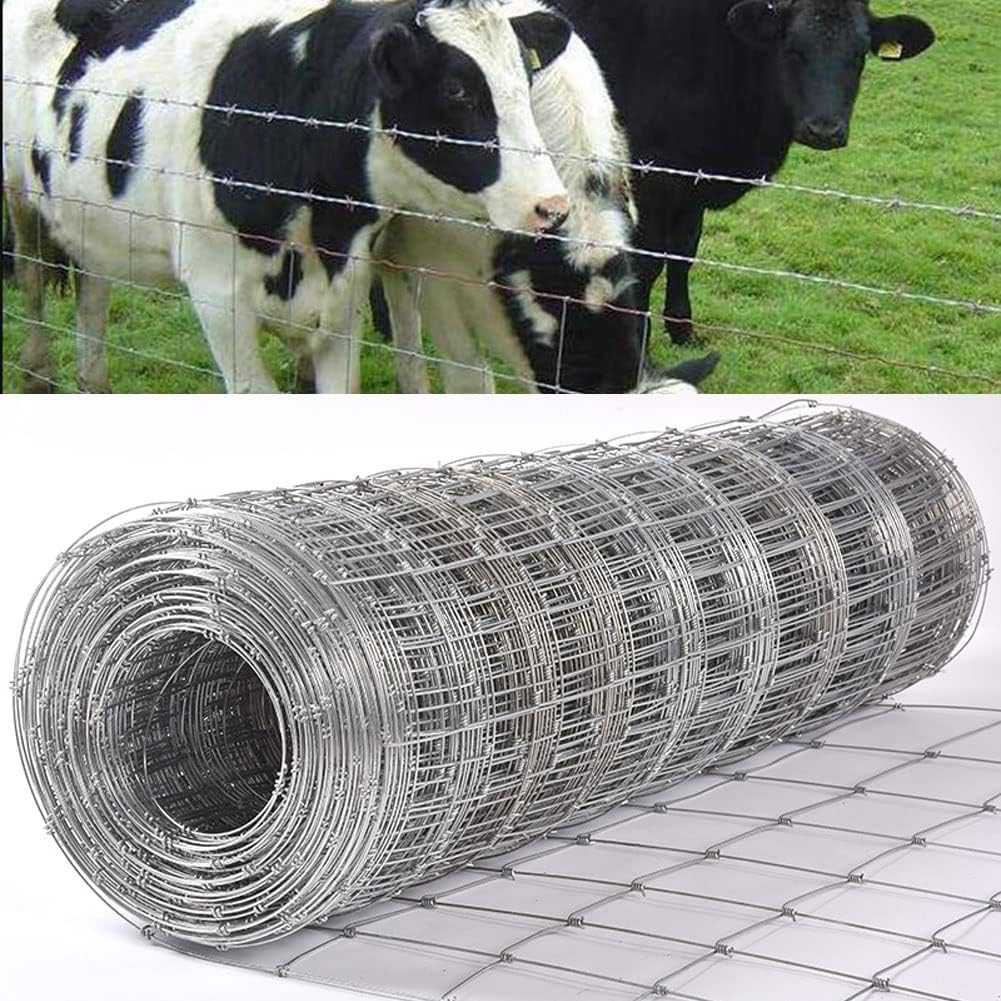

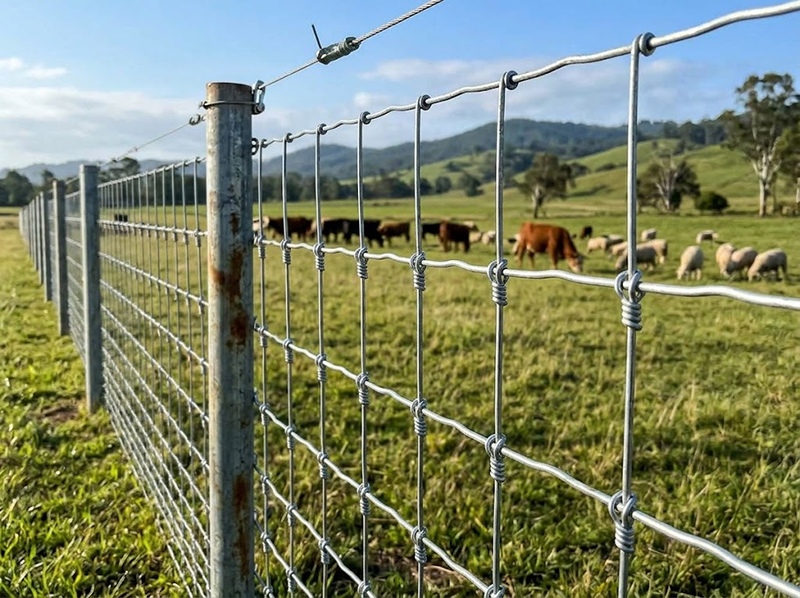

Cattle & Beef Ranches — Fixed knot fence contains cattle of all sizes. The strong knots resist impact when cattle push against the fence. Horizontal wire spacing stays consistent so animals cannot put their heads through.

Deer Farms & Game Reserves — Deer cannot push through or jump over properly installed fixed knot fence. The smooth galvanized surface prevents injury to valuable breeding stock.

Sheep & Goat Pens — Smaller mesh spacing near the bottom keeps sheep and goats inside while larger spacing above reduces material cost. Custom mesh patterns are available.

Perimeter Security for Farms — Farm owners use fixed knot fence as the primary boundary marker. The fence is visible, durable, and clearly marks property lines to neighbors and visitors.

Government & Conservation Projects — Wildlife agencies install fixed knot fence to manage animal movement, protect restoration areas, and create controlled grazing zones. ABX Metal supplies government contractors worldwide.

Quality Assurance

ABX Metal tests every production batch for wire tensile strength, knot slip resistance, and zinc coating thickness. Our QC laboratory uses digital tensile testers and coating thickness gauges. We provide mill test reports with each shipment. Production conforms to ASTM A116 and EN 10244 standards for galvanized steel wire products.

Our factory quality management system is ISO 9001 certified. We maintain full production records for traceability. If you need certification for customs or project compliance, we deliver documents promptly. Our export team has 10+ years experience with smooth customs clearance in 30+ countries.

Packing & Shipping

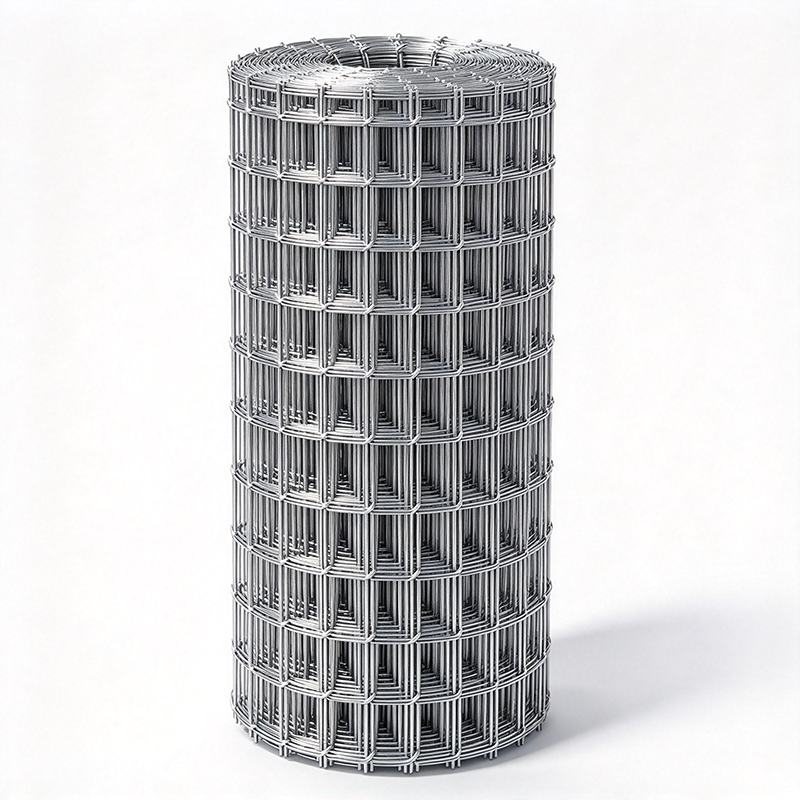

ABX Metal packs fixed knot mesh fence rolls in waterproof paper and woven bags. We load containers to maximize space and reduce freight cost per roll. For bulk orders, pallet packing is available at extra cost. Typical production lead time is 20-30 days after order confirmation and deposit receipt.

Frequently Asked Questions

What is the minimum order quantity for fixed knot mesh fence?

ABX Metal accepts orders starting from 5 rolls for sampling and trial runs. Standard MOQ for正式 orders is 50 rolls. For wholesale distributors and large ranch projects, we offer volume pricing tiers. Contact our sales team with your required height, model, and quantity for a detailed quotation.

Which knot type should I choose for cattle?

For cattle, we recommend square deal knot or cross lock knot fence. Cattle are heavy animals that lean and push against fences. Monarch knot fence flexes more and works better for deer or terrain with frequent ground movement. Our sales team helps you select the right knot type for your livestock and budget.

Can you customize the mesh spacing pattern?

Yes, ABX Metal customizes mesh spacing to your specification. Many customers choose smaller spacing (5cm) at the bottom for small animals and larger spacing (20-30cm) at the top to reduce cost. Send us your spacing drawing and we produce exactly to your requirement. Typical lead time for custom patterns is 25-35 days.

What coating thickness do you recommend for coastal areas?

For coastal or high-humidity environments, we recommend heavy galvanizing with zinc coating ≥270g/m². Standard galvanizing (40-60g/m²) lasts 5-8 years near salt spray. Heavy galvanizing extends service life to 12-15 years. We can also add PVC coating over galvanizing for maximum corrosion protection exceeding 20 years.

Do you supply fence posts and installation accessories?

Yes, ABX Metal supplies matching steel posts, wood posts, tensioners, brace assemblies, and all installation hardware. We calculate the complete bill of materials for your fence layout free of charge. This ensures you receive everything needed without extra procurement. We also provide installation guides and video support for your team.
