Description
What is a Hesco Barrier Bastion?

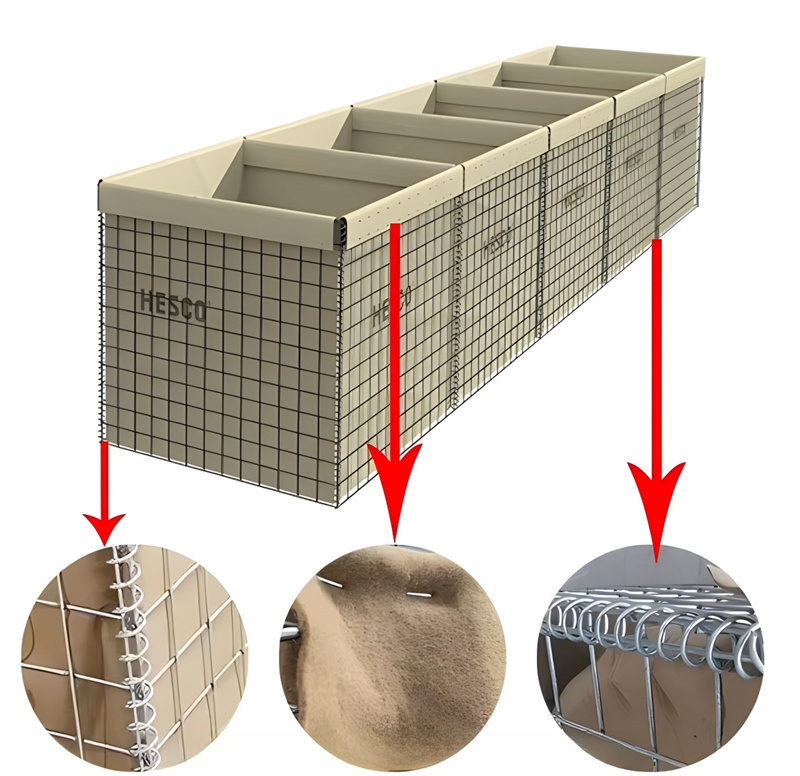

A Hesco Barrier (also known as a Hesco Bastion or Concertainer) is a pre-fabricated, modular containment system designed for rapid security wall deployment and erosion control. It consists of a collapsible welded wire mesh basket lined with heavy-duty, UV-resistant non-woven geotextile fabric.
By filling the unit with locally sourced granular material—such as soil, sand, or crushed rock—engineers can rapidly construct scalable perimeter barriers.
-
Primary Applications: Military force protection (shielding against small-arms fire and blast fragmentation) and civil engineering projects (flood defense, levees, and cofferdams).
-
Key Advantage: Deploys up to 10x faster than traditional hand-filled sandbags with minimal manual labor.
Technical Specifications of Hesco Barriers
| Specification | Value/Range | Impact on Performance |
|---|---|---|
| Carbon Content | ≤ 0.1% | Enhanced ductility and flexibility |
| Wire Thickness | 3.5mm – 5.0mm | Consistent high tensile strength |
| Tensile Strength | 500–800 Mpa | Resists blasts and heavy impacts |
| Weld Tensile Strength | 50–100% of base value | Secure structural integrity |
| Surface Treatment | 40–600 g/sqm | Superior corrosion protection |
| Geotextile Fabric Weight | 250–350 g/sqm | Extra reinforcement and erosion control |
Standard Hesco Unit Sizes (MIL Series)
| Standard sizes | Height | Width | Length | Cells |
|---|---|---|---|---|
| MIL1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 4+5 cells |
| MIL2 | 24”(0.61m) | 24”(0.61m) | 4′(1.22m) | 2 cells |
| MIL3 | 39”(1.00m) | 39”(1.00m) | 32’9”(10m) | 5+5 cells |
| MIL4 | 39”(1.00m) | 60”(1.52m) | 32’9”(10m) | 5+5 cells |
| MIL5 | 24”(0.61m) | 24”(0.61m) | 10′(3.05m) | 5 cells |
| MIL6 | 66”(1.68m) | 24”(0.61m) | 10′(3.05m) | 5 cells |
| MIL7 | 87”(2.21m) | 84”(2.13m) | 91′(27.74m) | 4+4+5 cells |
| MIL8 | 54”(1.37m) | 48”(1.22m) | 32’9”(9.14m) | 4+5 cells |
| MIL9 | 39′(1.00m) | 30”(0.76m) | 30′(9.14m) | 6+6 cells |
| MIL10 | 87”(2.21m) | 60”(1.52m) | 100′(30.5m) | 5+5+5+5 cells |
| MIL11 | 48”(1.22m) | 12”(0.3m) | 4′(1.22m) | 4 cells |
| MIL12 | 84”(2.13m) | 42”(1.06m) | 108′(33m) | 5+5+5+5+5+5 cells |
| MIL19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 3 cells |
DOWNLOAD: hesco barrier specification guide
Hesco Barriers vs. Concrete T-Walls: Defensive Physics Compared

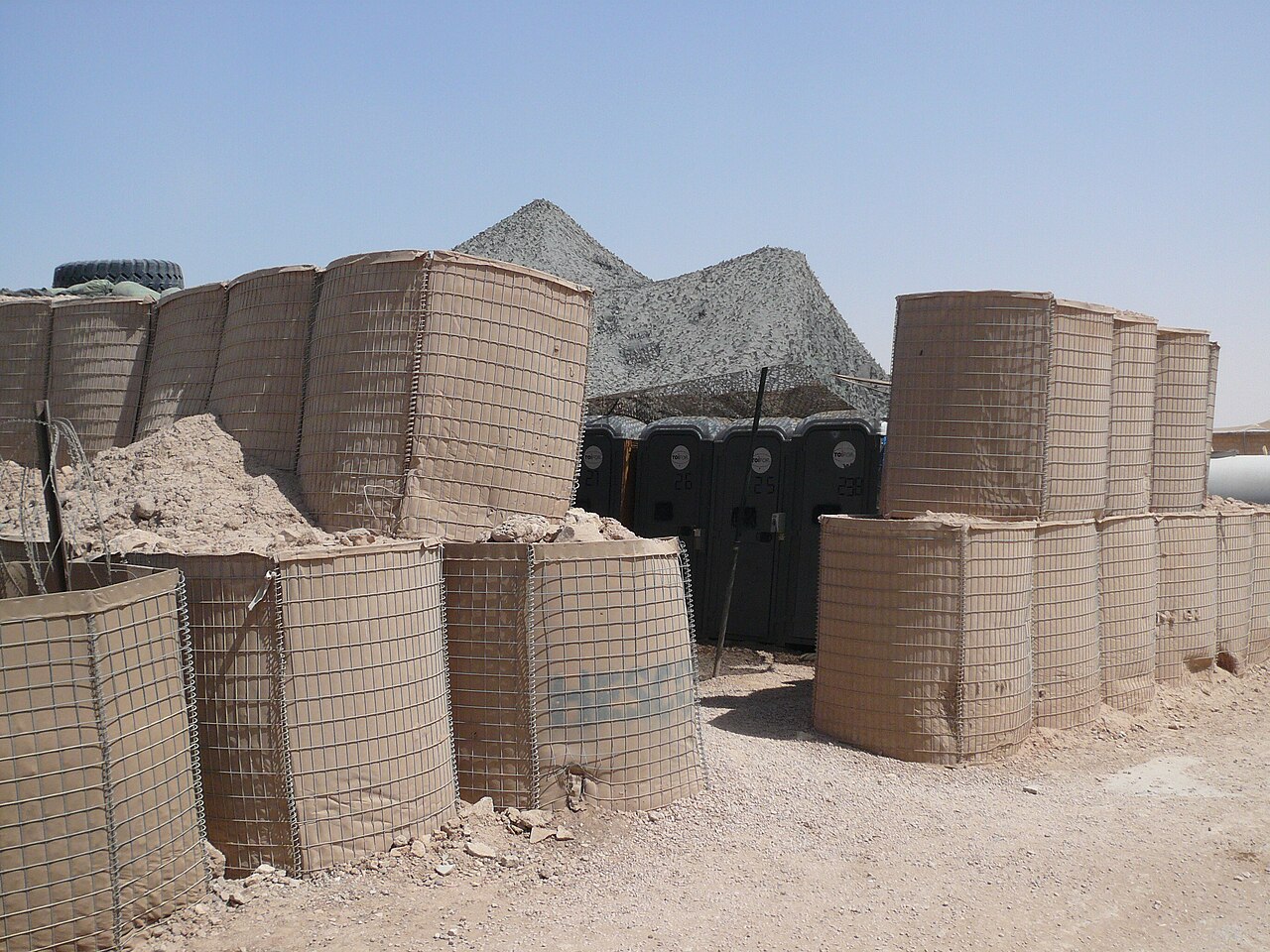

When securing Forward Operating Bases (FOBs) or high-risk infrastructure, engineers choose between two distinct defensive mechanics: Flexible Soft Armor (Hesco) vs. Rigid Hard Armor (Concrete T-Walls).
| Feature / Metric | Hesco Barrier (Flexible Armor) | Concrete T-Wall (Rigid Armor) |
|---|---|---|
| Defensive Mechanism | Kinetic Energy Absorption (Swallows blast force through internal particle friction) | Blast Wave Reflection (Directs shockwaves upward and away via sheer mass) |
| Material / Fill | Local Soil / Sand / Gravel / Crushed Rock | Pre-cast Reinforced Concrete with Internal Steel Rebar |
| Logistics & Freight | Flat-pack Shipping (High container volume efficiency from factory) | Heavy Crane & Dedicated Flatbed Transport Required |
| Deployment Speed | Minutes with Front-End Loader (Minimal manual labor required) | Labor & Rigging Intensive (Requires skilled crane operators) |
1. Hesco Bastion (Flexible Kinetic Absorber)
-
Energy Mechanics: Functions as a massive kinetic sponge. Upon rocket, artillery, or shrapnel impact, the blast wave displaces internal sand grains. Friction between millions of particles converts and dissipates kinetic energy safely inside the unit.
-
B2B Procurement Value: Extremely low shipping cost (flat-packed from factory), ultra-fast installation using local fill material, and self-healing properties as soil naturally settles after non-catastrophic impacts.
2. Concrete T-Wall / Bremer Wall (Rigid Shield)
-
Energy Mechanics: Relies on high mass and density to reflect blast shockwaves. The internal steel rebar matrix withstands extreme force, deflecting kinetic energy upward away from base assets.
-
B2B Procurement Value: Best suited for permanent bases where fill material (sand/earth) is completely unavailable. Requires heavy cranes for handling and higher freight budgets.
Frequently Asked Questions (FAQs)
What are the main advantages of Hesco Barriers over traditional sandbags?
Hesco barriers provide unmatched installation speed, structural integrity, and labor savings:
-
Deployment Efficiency: A small crew using a front-end loader can fill a single Hesco unit in minutes, replacing thousands of hand-filled sandbags.
-
Structural Stability: Interlocking wire-mesh cells prevent slumping, sagging, and displacement under hydraulic or blast pressure.
-
Scalability: Units stack easily to build multi-tiered defensive walls or flood barriers.
What materials can be used to fill Hesco Barriers?
Hesco barriers accommodate almost any locally available granular fill material, including:
-
Sand & Gravel: Ideal for kinetic energy absorption in military blast walls.
-
Clay & Compacted Soil: Recommended for civil flood control to eliminate water seepage.
-
Crushed Rock & Small Rubble: Highly effective for temporary perimeter barriers when soil is unavailable.
How long do Hesco Barriers last after deployment?
-
Standard Life Expectancy: 2 to 5 years under outdoor UV exposure. UV-stabilized geotextile fabric delays degradation.
-
Long-Term Protection: By applying shotcrete (sprayed concrete) or external cladding, service life can extend to 20+ years. Even if the fabric degrades over decades, the hot-dipped galvanized mesh cage maintains outer structural support.
Are Hesco Barriers reusable and easy to remove?
Yes. Modern recoverable Hesco bastions feature a pin-locking mechanism. Removing the vertical locking pin opens the mesh panel, dumping the fill material instantly. Once emptied, the mesh collapses flat for efficient transport, re-bundling, and storage.
