Description
As a direct manufacturer, ABX Metal produces high-performance PU screen mesh panels (polyurethane-coated high-carbon steel wire composite). Our advanced factory combines the extreme tensile strength of structural steel wire with the exceptional wear resistance of proprietary polyurethane formulations. These industrial composite panels deliver 3 to 8 times the service life of standard wire mesh, making them an ideal screening solution for heavy-duty grading, sizing, and dewatering. We support full OEM customization and bulk orders with competitive factory lead times.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Core Construction | Polyurethane-coated high-carbon steel wire composite (synthetic fiber reinforced) |

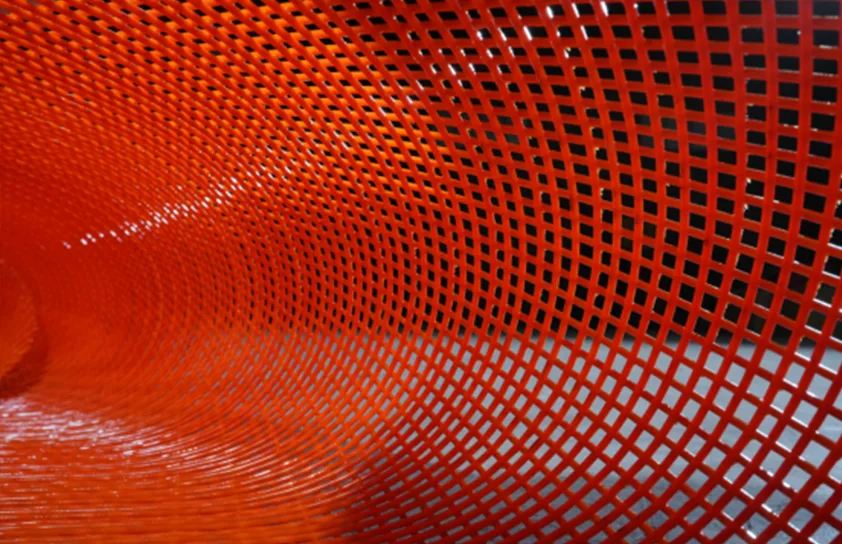

| Square Opening (Aperture) | From 2.0 mm and above |

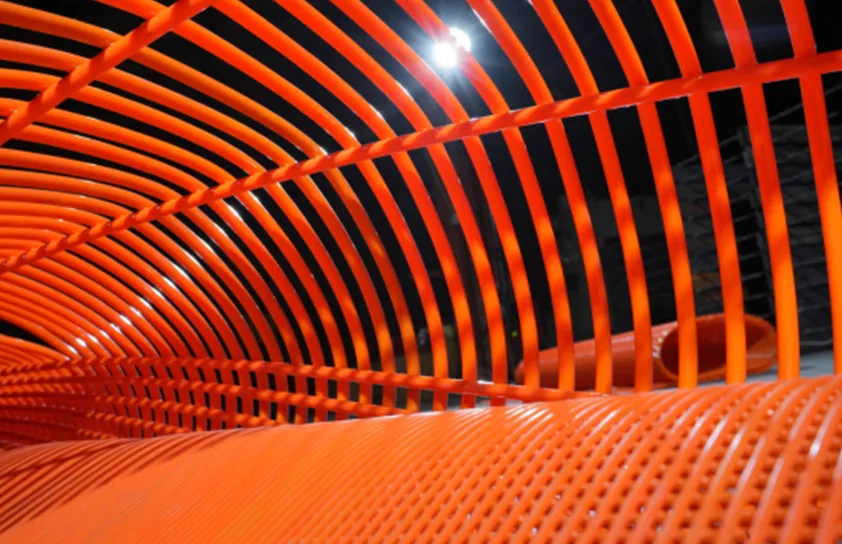

| Slotted Opening (Aperture) | From 1.0 mm and above |
| Wire Diameter Range | From 1.6 mm and above |
| Welding & Style Options | Fully welded (maximum rigidity), Partially welded (enhanced flexibility) |
| Supply Formats | Tensioned panels, Continuous roll format, Custom hook configurations |
| Polyurethane Hardness | Shore A 80 – 95 (Custom formulations available for specific impact levels) |
| Wear Resistance | 3 – 8 times greater than standard high-carbon wire mesh |
PU Screen Mesh Panel Construction Types

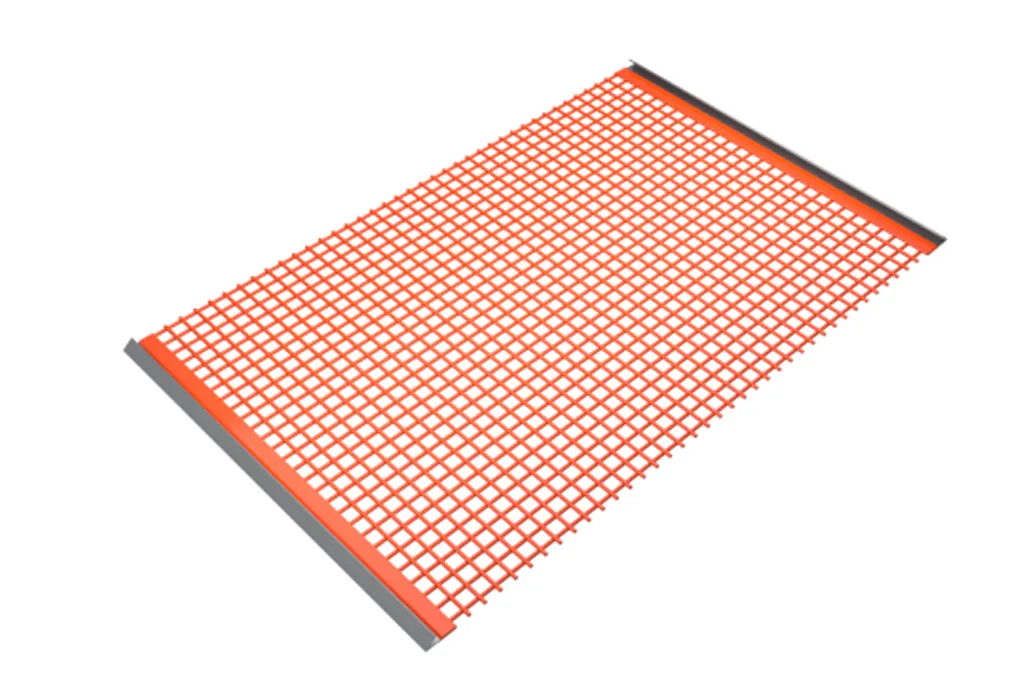

Fully Welded Construction
Every wire intersection receives a precision weld point before encapsulation in the polyurethane coating. This creates maximum structural rigidity, ensuring the PU screen mesh panels resist deformation under high-tonnage, heavy material loads. Recommended for primary, high-volume dry screening.
Partially Welded Construction
Selected intersections are strategically welded to maintain structural integrity while maximizing overall panel flexibility. This allows the screens to conform perfectly to curved, crowned, or side-tensioned decks. The added elasticity facilitates secondary micro-vibrations, making it highly effective for fine screening and preventing clogging.

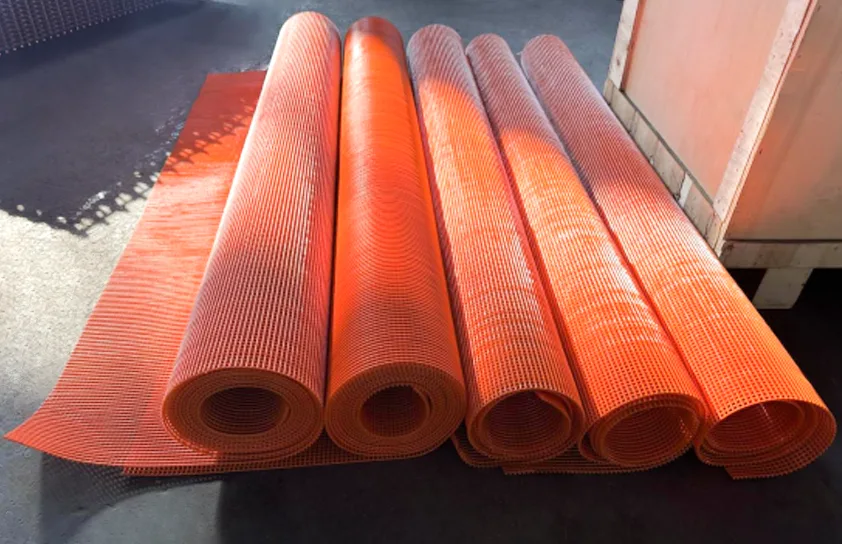

Continuous Roll Format
We supply our PU screen mesh in continuous rolls for convenient on-site cutting and custom fitting. Rolls simplify warehouse inventory management for maintenance teams, allowing you to cut panels to precise sizing for multiple multi-deck screen configurations as needed.

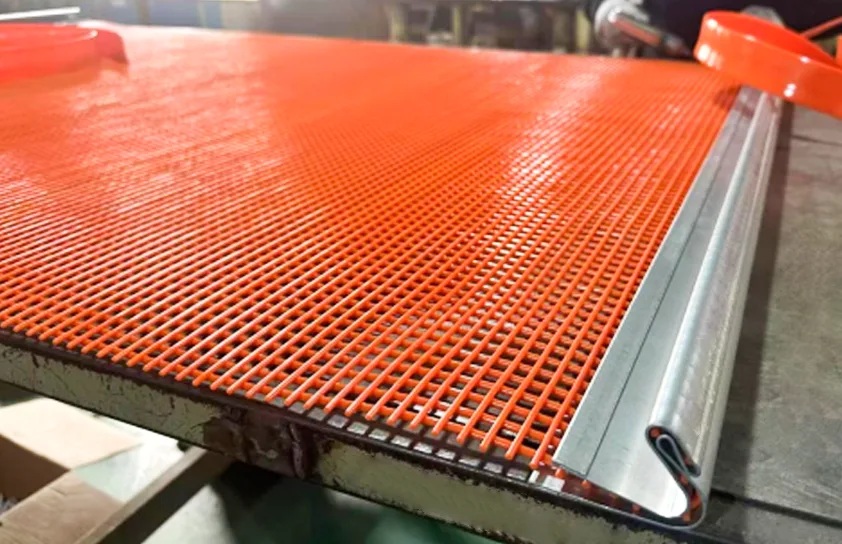

PU-Mesh Tension Type and Roll Configuration
Key Features
- 3-8x Extended Lifespan: Polyurethane outer layer protects the core high-carbon steel wire from aggressive friction and impact.
- Composite Grid Structure: Combines synthetic fibers/steel wire within vertical and horizontal lines for perfect dimensional stability.
- Precision Apertures: Square openings starting from 2mm and slotted openings starting from 1mm for ultra-fine classification.
- Flexible Configurations: Available in fully welded or partially welded styles, offered in tensioned panels, roll formats, or custom hook configurations to fit any screen deck setup.
- Noise Reduction: Polyurethane material drastically dampens operational vibration noise compared to bare metal mesh, creating a safer, quieter working environment.
Applications of PU Screen Mesh Panel

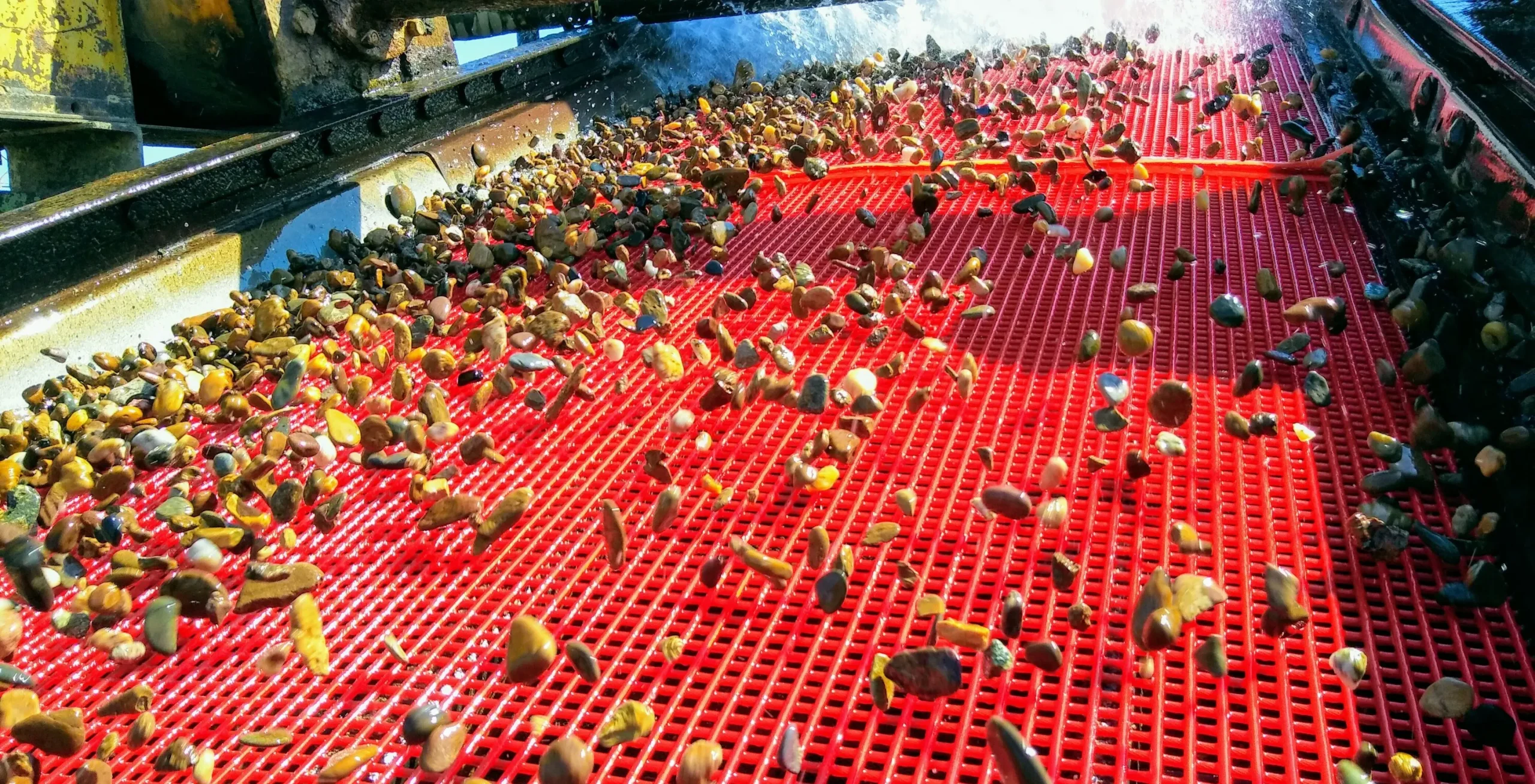

Aggregate and Sand Screening
PU screen mesh panels classify sand, gravel, and crushed stone with extended wear life in high-abrasion aggregate plants. The polyurethane coating withstands constant particle impact. Our factory supplies panels for wet and dry aggregate screening. Wholesale pricing is available for multi-deck plant requirements.
Mining and Mineral Processing
For iron ore, copper, and mineral processing, PU screen mesh panels handle abrasive slurries and heavy material loads. The composite construction resists both impact and chemical corrosion. Our panels serve dewatering, classification, and media recovery applications in mineral processing circuits.
Steel Slag and Recycling
PU screen mesh panels process abrasive steel slag, recycled concrete, and demolition waste. The polyurethane coating resists cutting damage from sharp-edged recycled materials. Extended panel life reduces maintenance frequency in high-wear recycling operations.
Why Choose Our PU Screen Mesh Panels?
Dramatically Longer Service Life
Our PU screen mesh panels combine steel wire tensile strength with polyurethane abrasion resistance. The high-elasticity PU coating absorbs impact energy that would quickly degrade or fracture bare wire. In highly abrasive aggregate, mining, and recycling applications, these hybrid panels last 3 to 8 times longer than standard woven wire mesh. Reducing screen change frequency directly minimizes operational downtime and maintenance labor costs.
High Screening Efficiency & Anti-Blinding
The inherent flexibility of our polyurethane compound, combined with a specialized partially-welded wire pattern, promotes effective secondary vibration during operation. This dynamic flex action prevents material pegging and blinding, ensuring continuous, high-throughput material flow even in wet or sticky screening conditions.
Lightweight & Easy Handling
Despite their rugged durability, PU screen mesh panels are significantly lighter than traditional all-steel heavy meshes. Their lightweight and rollable construction allows for easy transport, compact storage, and single-person installation in tight spaces without requiring heavy lifting equipment.
Global Supply & Quality Assurance
At ABX Metal, our ISO 9001 certified manufacturing facility tests each batch of PU screen mesh panels for coating thickness, polyurethane-to-steel adhesion strength, Shore A hardness, and weld integrity per ASTM standards. As a direct factory supplier, we offer competitive wholesale pricing for bulk orders and reliable container shipping with complete QC documentation.
How much longer do PU screen mesh panels last compared to wire mesh?
Our PU screen mesh panels provide 3 to 8 times longer service life than standard woven wire mesh in comparable conditions. The polyurethane coating absorbs impact energy that wears bare steel wire. Actual wear improvement depends on material abrasiveness, feed rate, and operating conditions. We provide application-specific wear life estimates.
Can PU screen mesh panel be repaired if the coating wears?
Minor coating damage does not compromise the steel wire core. The panel continues screening effectively. For major wear areas, we recommend panel rotation or replacement. As a direct manufacturer, we offer competitive replacement pricing to minimize your operating costs.
What is the difference between PU screen mesh and urethane screen panels?
PU screen mesh panels use polyurethane-coated steel wire in a mesh format. They remain flexible and lightweight. Urethane screen panels are solid molded polyurethane plates. Mesh panels provide more open area. Solid panels offer longer wear life in extreme abrasion. We help you select the right type for your application.
Do you provide PU screen mesh panels in custom sizes?
Yes. As a direct manufacturer, we produce PU screen mesh panels to your exact dimensions. Our factory supports OEM orders with custom aperture sizes, panel dimensions, and hook configurations. Contact our sales team with your specifications for a quotation.
