Welded Wire Mesh

Description

High-Performance Welded Wire Mesh: Engineering Excellence

Our welded wire mesh represents the pinnacle of industrial strength and precision. We combine high-grade raw materials with state-of-the-art resistance welding to deliver a product that exceeds expectations in the most demanding environments.

Premium Material & Surface Treatments

Choosing the right material ensures the longevity of your welded wire mesh project. We offer a comprehensive range of options:

• Carbon Steel (Black Wire): The most cost-effective choice for indoor applications or projects requiring further onsite processing.

• Stainless Steel (Grade 304/316): Provides ultimate resistance to acids, alkalis, and extreme temperatures. Ideal for food processing or chemical industries.

• Electro-Galvanized (EG): Features a smooth, bright finish with a thin zinc layer, suitable for general-purpose use.

• Hot-Dipped Galvanized (HDG): Our specialty. We ensure a thick zinc coating (up to 300g/m²) for decades of rust protection in outdoor or buried conditions.

• PVC/Powder Coating: Offers double protection (galvanized + polymer) and a variety of colors like Forest Green or Black for aesthetic fencing.

Strict Adherence to International Standards

As an export-oriented manufacturer, we guarantee that our products meet or exceed global quality benchmarks:

Standard Category	Reference Standard	Key Compliance Metrics
US Standards	ASTM A185 / A1064	Tensile strength, wire diameter tolerances, and weld shear strength.
European Standards	EN 10223-4 / BS 4483	Galvanization quality, mesh uniformity, and steel grade verification.
Testing Protocols	ISO 9001:2015	Full traceability from raw material to finished rolls/panels.

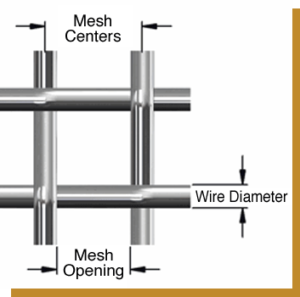

Technical Specifications of ABX Welded Wire Mesh

Open(inch)	Open(mm)	Wire Diameter(BWG)
1/4″×1/4″	6.4mm×6.4mm	22 / 23 / 24
3/8″×3/8″	10.6mm×10.6mm	19 / 20 / 21 / 22
1/2″×1/2″	12.7mm×12.7mm	16 / 17 / 18 / 19 / 20 / 21 / 22 / 23
5/8″×5/8″	16mm×16mm	18 / 19 / 20 / 21
3/4″×3/4″	19.1mm×19.1mm	16 / 17 / 18 / 19 / 20 / 21
1″×1/2″	25.4mm×12.7mm	16 / 17 / 18 / 19 / 20 / 21
1-1/2″×1-1/2″	38mm×38mm	14 / 15 / 16 / 17 / 18 / 19
1″×2″	25.4mm×50.8mm	14 / 15 / 16
2″×2″	50.8mm×50.8mm	12 / 13 / 14 / 15



Common Wire Gauge and Diameter Comparison Table

Download Complete Common Wire Gauge and Diameter Comparison Table （AWG-BWG-SWG)

Specification	BWG (Birmingham)
Gauge Number	Inch	mm
8	0.165	4.191
9	0.148	3.759
10	0.134	3.404
11	0.12	3.048
12	0.109	2.769
13	0.095	2.413
14	0.083	2.108
15	0.072	1.829
16	0.065	1.651
17	0.058	1.473
18	0.049	1.245
19	0.042	1.067
20	0.035	0.839
21	0.032	0.831
22	0.028	0.711
23	0.025	0.635
24	0.022	0.559
25	0.02	0.508





Why B2B Buyers Trust Our Supply Chain?



1. Precision Welding Technology

Our automated production lines maintain consistent mesh openings and flat surfaces. This precision minimizes material waste and speeds up your installation on-site.

2. Verified Load Capacity

We test our welded mesh for heavy-duty applications. From concrete reinforcement to industrial shelving, our products handle high-stress loads without deformation.

3. Custom Fabrication for Large Projects

We understand that standard sizes don’t always fit. Our factory provides custom wire gauges, specific roll lengths, and unique panel dimensions to match your project’s technical blueprints.

Applications Across Industries

• Infrastructure: Reinforcing mesh for roads, bridges, and high-rise buildings.

• Security: Anti-climb 358 mesh and perimeter fencing for critical facilities.

• Agriculture: Specialized mesh for high-security livestock enclosures and plant support.

• Mining: Durable screening and safety partitions for heavy machinery.

Request Your Technical Data Sheet & Quote

Need a specific ASTM compliance report? Our technical team provides full documentation and competitive factory pricing for bulk orders. Contact us to optimize your procurement today.

---

FAQ

Q: What is the difference between Hot-Dipped Galvanized (HDG) and Electro-Galvanized (EG) welded wire mesh?

A: The main difference lies in corrosion resistance and zinc thickness. Hot-Dipped Galvanized mesh is submerged in molten zinc, creating a thick, durable layer (up to 300g/m²) suitable for harsh outdoor environments. Electro-Galvanized mesh uses an electrolytic process to apply a thinner, smoother zinc layer, which is more cost-effective for indoor use or temporary projects.

Q: Can you provide welded wire mesh that complies with ASTM A185 or EN 10223-4 standards?

A: Yes. As a professional manufacturer, we ensure our products meet international benchmarks including ASTM A185/A1064 for US projects and EN 10223-4/BS 4483 for European markets. We can provide Material Test Reports (MTRs) and technical data sheets upon request to verify tensile strength and coating quality.

Q: Does “Galvanized Before Welded” (GBW) differ from “Galvanized After Welded” (GAW)?

A: Yes, and the difference is critical for longevity. GBW mesh uses pre-galvanized wire, which may leave the welding points exposed to rust. GAW mesh is galvanized after the welding process, ensuring the protective zinc layer covers every joint and intersection. We recommend GAW for high-moisture or industrial applications to prevent premature corrosion.

Q: What is the maximum wire gauge and customized mesh size you can manufacture?

A: We operate advanced automated production lines capable of handling wire diameters from 0.5mm to 8.0mm. Our machines support a wide range of mesh openings, from 1/4″ precision mesh to 6″ heavy-duty panels. We also offer custom fabrication for unique roll lengths or specific panel dimensions based on your project blueprints.

Q: How do you ensure the quality of large-scale bulk orders for export?

A: We implement a multi-stage quality control process. This includes raw material inspection, real-time monitoring of weld shear strength, and pre-shipment testing for zinc coating thickness and dimensional accuracy. We also welcome third-party inspections from agencies like SGS or Intertek to ensure full compliance before the goods leave our factory.
